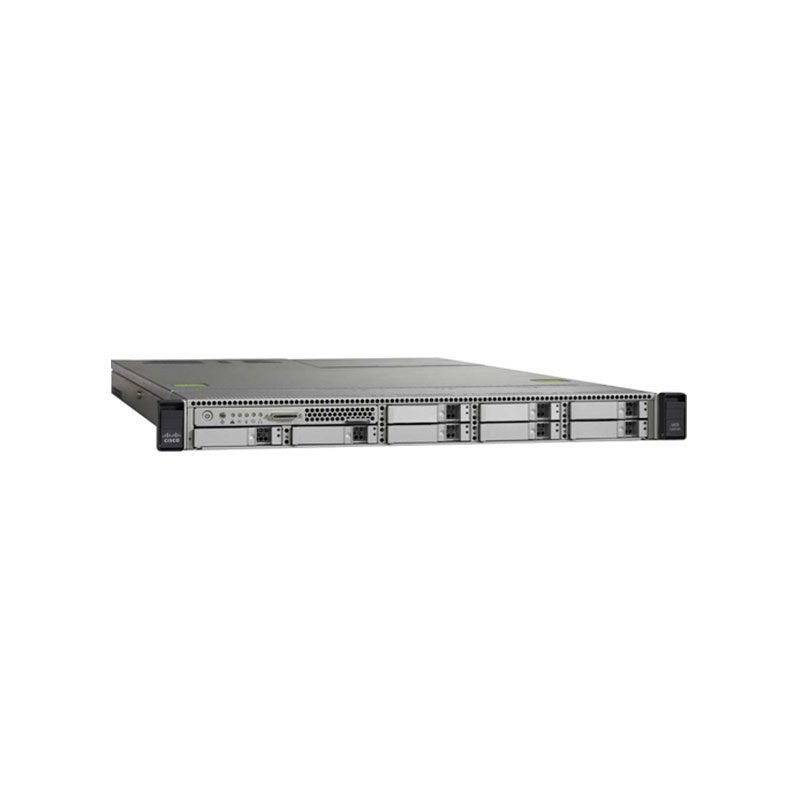

UCSC-DBUN-C220-109 Cisco Systems UCS C220 M3 SFF Server with Dual E5 Processors

Description

UCSC-DBUN-C220-109 Technical Specifications

Cisco Systems UCS C220 M3 SFF 2XE5-2665

General Information
Product Name: UCS C220 M3 SFF 2XE5-2665 with 2X8GB 9266CV and Dual 650W SD Rails
Manufacturer Part Number: UCSC-DBUN-C220-109
Product Series: C220 M3
Product Type: Server
Controllers
Controller Types: Serial SATA/600 and 6Gb/s SAS
RAID Support: Yes, with levels 0, 1, 5, 6, 10, 50, 60
Memory
Standard Memory: 16 GB
Memory Technology: DDR3 SDRAM
Total Memory Slots: 16 DDR3 Slots
Network & Communication
Ethernet Technology: Gigabit Ethernet
Power Description
Installed Power Supplies: 2
Maximum Power Supply Wattage: 650 W
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Manufacturer: Intel
Processor Type: Intel Xeon
Model: E5-2665
Core Count: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Dimensions: Height 1.7″, Width 16.9″, Depth 28.5″
Other Information
Product Family: C220 M3
Cache: 20 MB
Memory Card Reader: Yes
64-bit Processing: Yes
QuickPath Interconnect: 8 GT/s
Hyper-Threading: Yes
Total Expansion Slots: 2
PCI Express Slots: 1 x8 and 1 x16
VGA: Yes
Network (RJ-45): Yes
Remote Management: Yes
Total USB Ports: 5 (2 USB 2.0)
Memory Card Supported: SD
Memory Standard: DDR3-1600/PC3-12800
