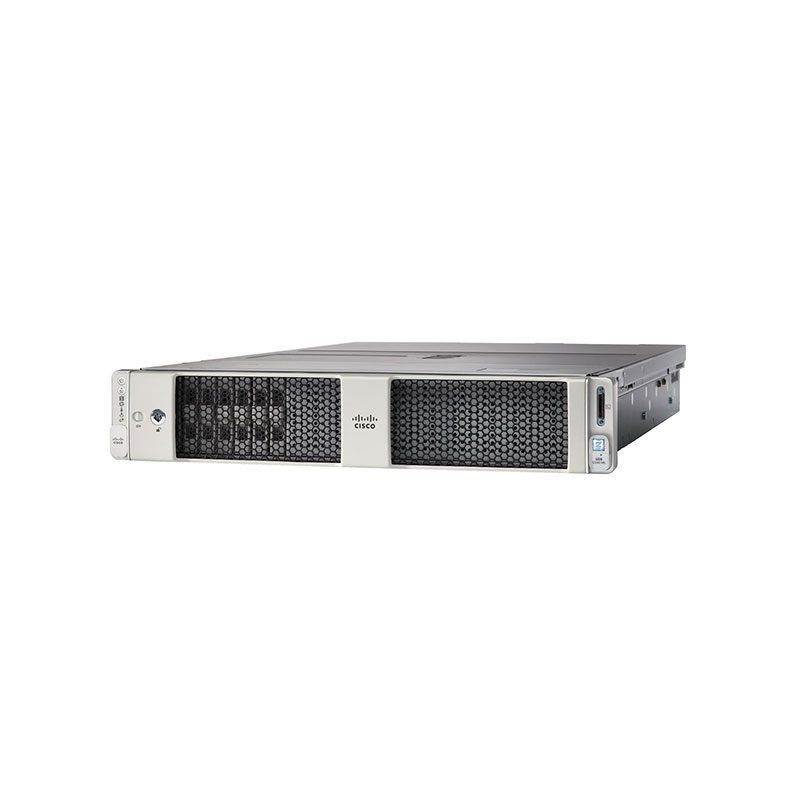

UCSC-C240-M5S Cisco UCS C240 M5 Rack Server Module

Description

UCSC-C240-M5S Technical Specifications

Cisco UCS C240 M5 Rack Server Module

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 10
Total Qty: 10 Bays
Cabinet
Chassis Built-in Devices: Backplane
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 10
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Humidity Range Operating: 8 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Slots
Type: CPU, DIMM 288-pin, M.2 Card, mLOM, PCIe, PCIe 3.0, PCIe x16, PCIe x8
Header
Brand: Cisco
Model: C240 M5 Rack Server (SFF)
Packaged Quantity: 1
Networking
Data Link Protocol: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Power Device
Installed Qty: 0
Max Supported Qty: 2
Power Redundancy: Optional
Processor
Max Supported Qty: 2
Type: No CPU
RAM
Data Integrity Check: ECC
Slots Qty: 24 DDR4 Slots
Storage Controller
Channel Qty: 8
Type: RAID
