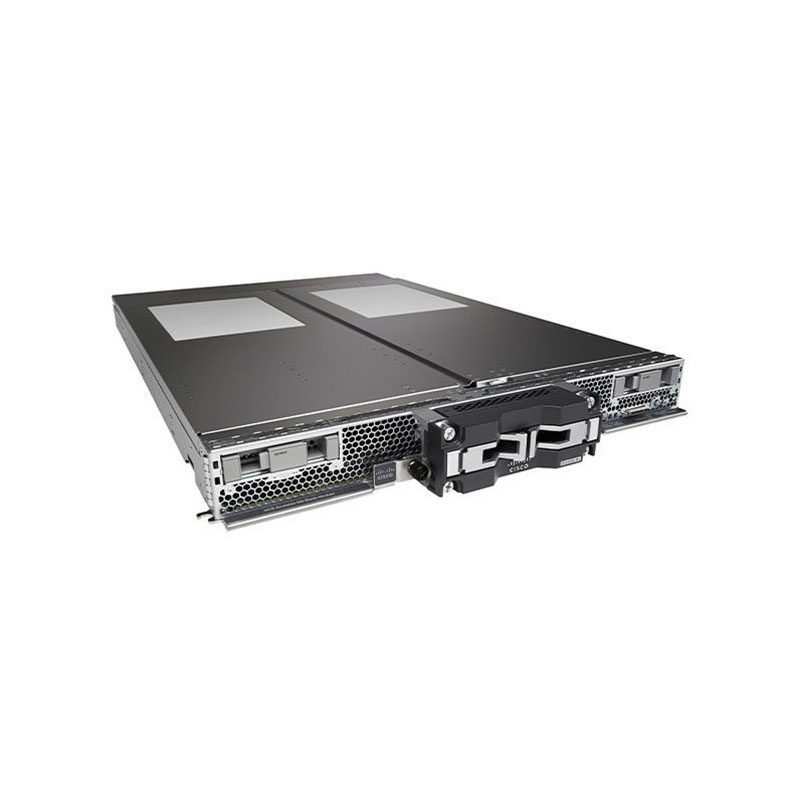

UCSB-EX-M4-1A-CH Cisco UCS Scalable M4 Blade Module Server

Description

UCSB-EX-M4-1A-CH Technical Specifications

Cisco UCS Scalable M4 Blade Module – Blade Server

Bay Configuration
Form Factor: 2.5″
Free Quantity: 2
Total Quantity: 2 Bays
Card Reader Support
Compatible Flash Memory Cards: SD Memory Card
Chassis Details
Form Factor: Blade Server
Hot-Swap Bays: 2
Manufacturer Form Factor: Blade
Storage Bays: Hot swap
Swappable Drive Form Factor: 2.5″ (6.4 cm)
Drive Interface: SAS
Dimensions & Weight
Depth: 25.5 in
Height: 1.9 in
Width: 17.2 in
Display Information
Type: None.
Environmental Conditions
Operating Humidity Range: 5 – 93% (non-condensing)
Maximum Operating Temperature: 95 °F
Minimum Operating Temperature: 50 °F
Expansion Bays
Form Factor (metric): 6.4 cm
Type: Hot-swap
Expansion Slots
Types: CPU, Expansion slot, Memory
Hard Drive Specifications
Type: No HDD
Third Hard Drive Type: None
Header Information
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Unified Computing
Model: Scalable M4 Blade Module
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Location: 1 internal
Type: USB 2.0 (Qty: 1), KVM
Mainboard Specifications
Chipset Type: Intel C602J
Miscellaneous
Color: Gray
Compliance Standards: AS/NZS 60950-1, CISPR 22 Class A, and others
Networking Features
Remote Management Controller: Cisco Integrated Management Controller
Optical Storage
Drive Type: No optical drive
Type: None
Printer Specifications
Type: None
Processor Information
Maximum Supported Quantity: 2
Server Scalability: 2-way
Type: No CPU
Upgradability: Upgradable
RAM Specifications
Installed Size: 0 GB
Maximum Supported Size: 3 TB
Technology: DDR3 SDRAM
