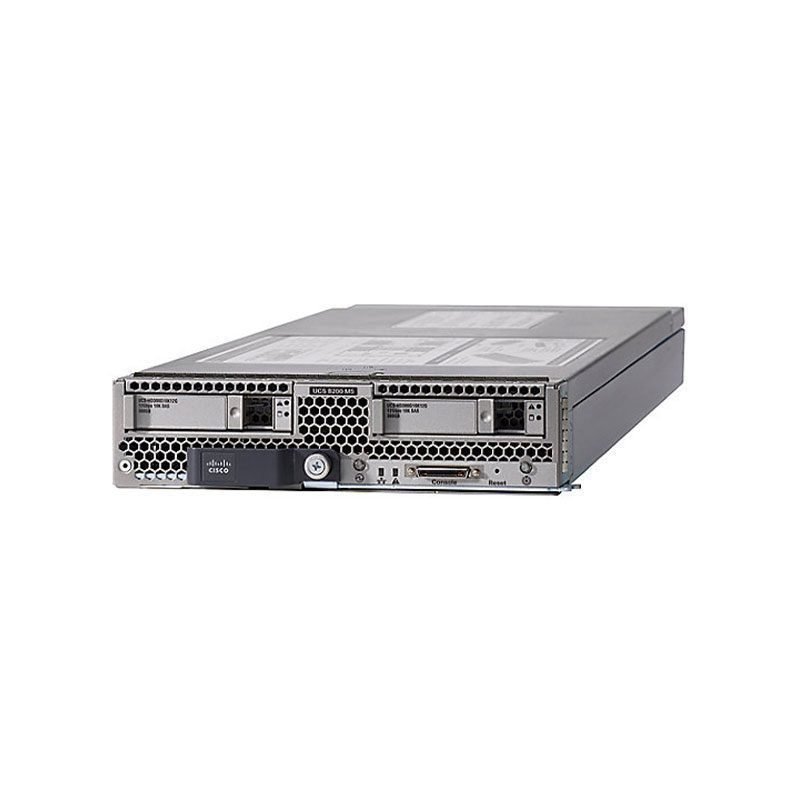

UCS-SPL-B200M4-C2 Cisco Systems UCS B200 M4 Blade Server

Description

UCS-SPL-B200M4-C2 Technical Specifications

Cisco Systems UCS SP Select B200M4 CORE2

General Information

• Product Name: UCS SP Select B200M4 CORE2 FD
• Manufacturer Part Number: UCS-SPL-B200M4-C2
• Product Series: B200 M4
• Product Type: Server

Controllers

• Controller Type: 12Gb/s SAS
• RAID Supported: Yes
• RAID Levels: 0, 1

Memory

• Standard Memory: 256 GB
• Maximum Memory: 768 GB
• Memory Technology: DDR4 SDRAM
• Number of Total Memory Slots: 24 DDR4 Slots

Network & Communication

• Ethernet Technology: 40 Gigabit Ethernet

Processor & Chipset

• Number of Processors Supported: 2
• Number of Processors Installed: 2
• Processor Manufacturer: Intel
• Processor Type: Xeon
• Processor Model: E5-2697 v3
• Processor Core: Tetradeca-core (14 Core)
• Processor Speed: 2.60 GHz

Physical Characteristics

• Form Factor: Blade

Other Information

• Product Family: B200 M4
• Cache: 35 MB
• Memory Card Reader: Yes
• 64-bit Processing: Yes
• QuickPath Interconnect: 9.60 GT/s
• Hyper-Threading: Yes
• Number of Total Expansion Slots: 2
• Network (RJ-45): Yes
• Maximum Turbo Speed: 3.60 GHz
• Memory Card Supported: SD, SDHC
• Memory Standard: DDR4-2133/PC4-17000
