Description
UCS-SP-C220M5-S1 Technical Specifications

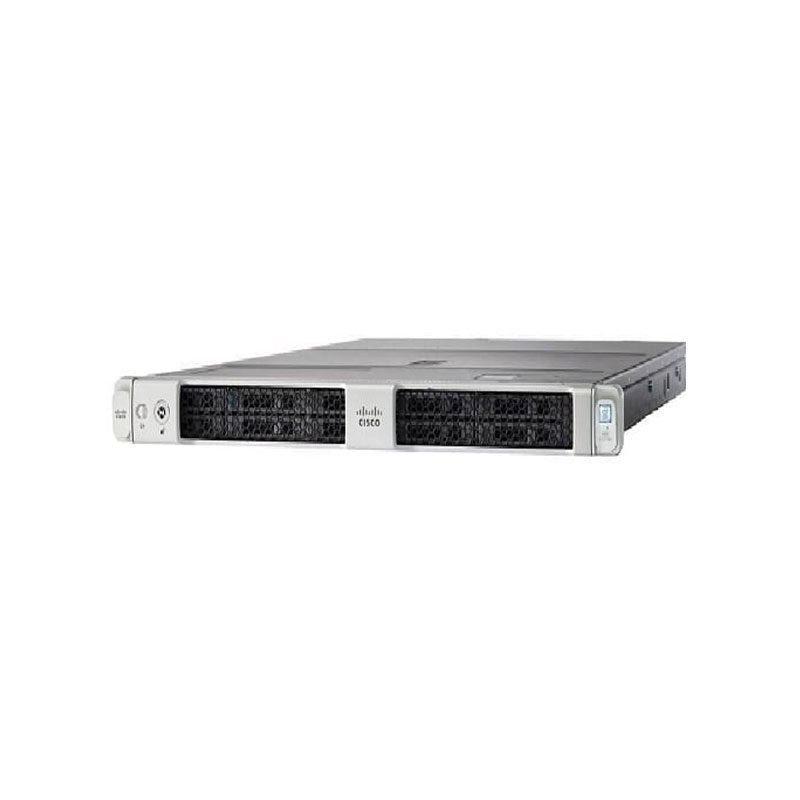

Cisco Systems C220 M5SX 2X4110 4X16GB
General Information
The product name is SP C220 M5SX 2X4110 4X16GB Memory VIC1387, with manufacturer part number UCS-SP-C220M5-S1. It belongs to the C220 M5 server series and is classified as a server under Cisco UCS.
Controllers
This server features a 12Gb/s SAS controller type and supports RAID functionality.
Display & Graphics
The graphics controller is manufactured by ASPEED, model Pilot 4, with a graphics memory capacity of up to 16 MB.
I/O Expansions
It includes 10 total expansion bays, all of which are hot-swappable and can accommodate 10 internal 2.5″ bays.
Memory
Standard memory is 64 GB, expandable up to 3 TB, utilizing DDR4 SDRAM technology across 24 slots, of which 4 are occupied.
Network & Communication
Ethernet technology is 10 Gigabit Ethernet.
Power Description
The server supports two power supplies.
Processor & Chipset
It supports two processors, with two Intel Xeon Silver 4110 processors installed, featuring octa-core architecture at a speed of 2.10 GHz.
Physical Characteristics
This 1U rack mount server has dimensions of 1.7″ in height, 19″ in width, and 31″ in depth.
