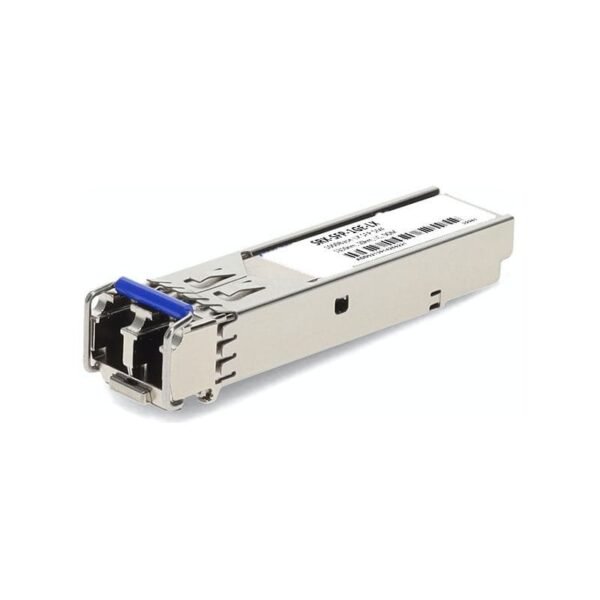

SRX-SFP-1GE-LX – Juniper Mini-GBIC SFP Transceiver Module

Technical Specifications of SRX-SFP-1GE-LX

Juniper SFP Mini-GBIC Transceiver Module Overview

Key Features:

• Device Type: SFP (Mini-GBIC) Transceiver Module
• Enclosure Type: Plug-In Module
• Networking: Wired Connectivity
• Cabling Type: 1000BASE-LX
• Data Link Protocol: Gigabit Ethernet
• Data Transfer Rate: 1 Gbps
• Expansion/Connectivity:
• 1 x Network – Ethernet 1000BASE-LX
• Compatible Slots: 1 x SFP (Mini-GBIC), compatible with Juniper Networks

Vendor Name: FS
Form Factor: SFP
Max. Data Rate: 1.25 Gbps
Wavelength: 1310 nm
Max. Cable Distance: 10 km @ SMF
Connector: Duplex LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5 to -3 dBm
Receiver Sensitivity: < -20 dBm
Power Consumption: ≤ 1 W
Receiver Overload: -3 dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: > 9 dB
EMC: Electro Magnetic Compatibility
