SPTSMP3CLCDA Technical Specification

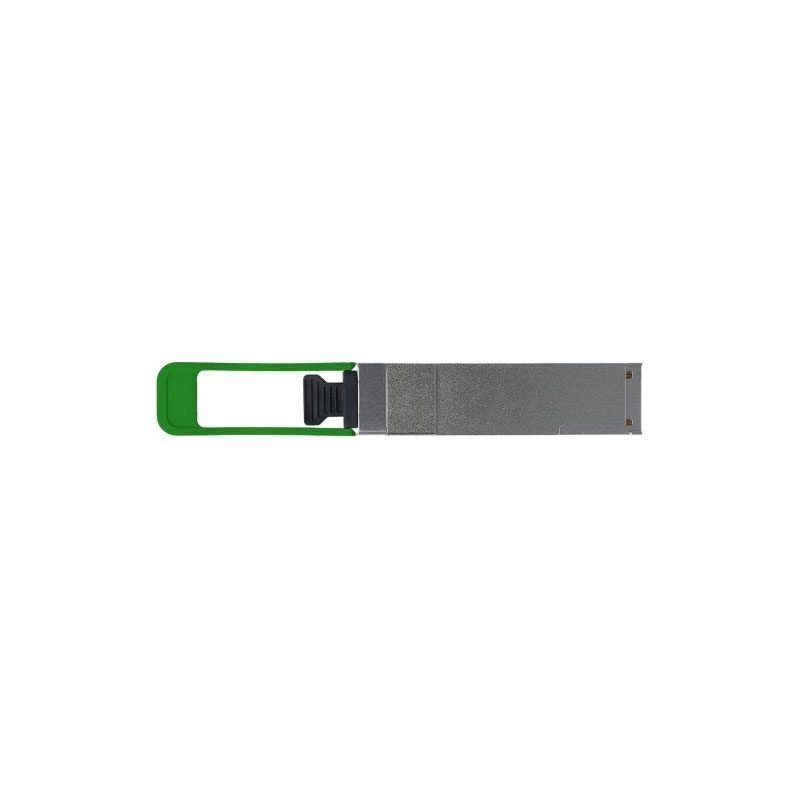

Intel 200G QSFP56 Module – 200GBase-FR4 Single-Mode, 4-Lanes, 1310nm, 2km
Brand: Intel
Media Type: Single-Mode Fiber (SMF)
Connectors: Double LC
Supported Data Rate: Up to 212.5 Gbps
Applications: 200G Ethernet (212.5 Gbps)
Modulation: PAM4 (Pulse Amplitude Modulation 4-level)
DDM/DOM: Supported
CDR Chip: Integrated
Forward Error Correction: Host FEC Supported
Minimum Optical Budget: 4 dB
Maximum Distance: 2km
RX Wavelengths: 1270 nm, 1290 nm, 1310 nm, 1330 nm
Average Launch Power (Min) Each Lane: -4.2 dBm
Average Launch Power (Max) Each Lane: 4.7 dBm
Extinction Ratio (Min): 3.5 dB
Average Receiver Sensitivity (Min) Each Lane: -8.2 dBm
Average Receiver Sensitivity (Max) Each Lane: 4.7 dBm
Receiver Overload: 4.7 dBm
Operating Temperature Range: 0° to 70°C
Storage Temperature: -40° to 85°C
Relative Humidity: 0 to 85%
Power Consumption: ≤6.5W
