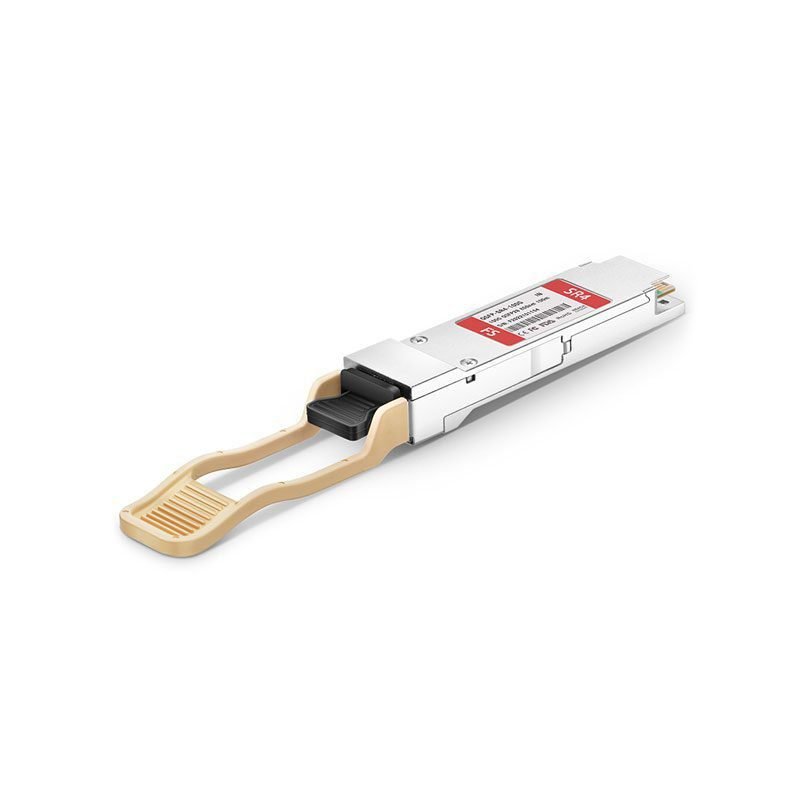

SPTMBP1PMCDF Intel 100GBASE-SR4 850nm Optical Transceiver Module – 100m DOM MPO-12/UPC MMF

SPTMBP1PMCDF
SPTMBP1PMCDF

  • Fast Shipping

    Receive products in amazing time

  • Easy Returns

    Return policy that lets you shop at ease

  • Always Authentic

    We only sell 100% authentic products

  • Secure Shopping

    Your data is always protected

$176.00

Highlights

SPTMBP1PMCDF Overview

The Intel SPTMBP1PMCDF QSFP28 Optical Transceiver Module is engineered for 100GBASE Ethernet performance, achieving distances of up to 100m over OM4 multimode fiber (MMF) with an 850nm wavelength through an MTP/MPO-12 connector. This module adheres to IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards and features digital diagnostics via the I2C interface for real-time operational insights.

SKU: SPTMBP1PMCDF Category: Tags: , , , , , Brand:

Description

SPTMBP1PMCDF Technical Specifications

Intel 100GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module

Brand: Intel
Maximum Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 850nm
Maximum Cable Distance: 70m@OM3/100m@OM4
Connector: MTP/MPO-12
Media Type: MMF
Transmitter: VCSEL 850nm
Receiver: PIN
TX Power: -8.4~2.4dBm
Minimum Receiver Power: -10.3dBm
Power Budget: 1.9dB
Receiver Overload: 2.4dBm
Typical Power Consumption: ≤2.5W
Extinction Ratio: ＞3dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
CDR: TX & RX Built-in CDR
Inbuilt FEC: No
Protocols: IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI

Additional information

Weight1.5 lbs
Dimensions7.59 × 4.27 × 2.27 in
