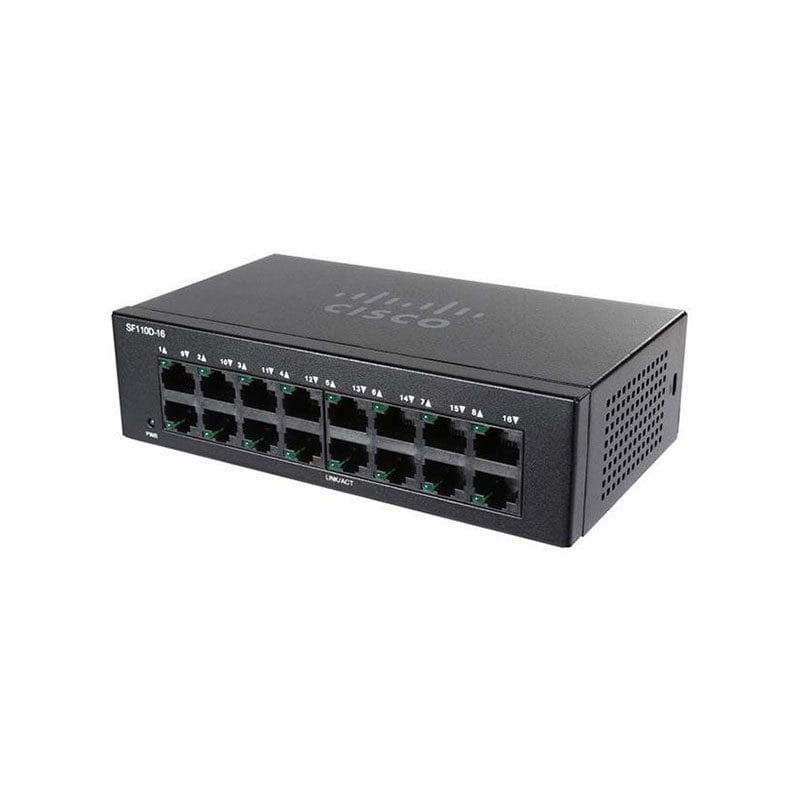

SF110D-16-NA Cisco 16-Port Small Business Switch

Description

SF110D-16-NA Technical Specifications

Cisco Small Business 16-Port Switch

Interface Details
Connector Type: RJ-45
Quantity: 16
Type: 100Base-TX
Networking Features
Standards Compliance: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Connectivity Technology: Wired
Features: Auto-uplink (auto MDI/MDI-X), Cable testing, Energy Efficient Ethernet, Fanless design, Quality of Service (QoS), Security lock slot (cable lock sold separately), Weighted Round Robin (WRR) queuing
Form Factor: Desktop or Wall-mountable
Jumbo Frame Support: 9216 bytes
Manageable: No
Total Ports: 16
Power Over Ethernet (PoE): No
Status Indicators: Link/activity, System
Subcategory: Network hubs and switches
Subtype: Fast Ethernet
Type: Switch
Additional Information
Color: Black
Compliance: CSA 22.2, FCC CFR47 Part 15, UL 60950
Environmental Conditions
Operating Humidity: 10 – 90% (non-condensing)
Storage Humidity: 5 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -4 °F
Product Information
Brand: Cisco
Compatibility: PC
Country Kits: North America
Manufacturer: Cisco Systems
Packaged Quantity: 1
Product Series: SF110
Product Line: Cisco Small Business
Power Specifications
Type: External power adapter
Capacity
QoS Hardware Queues: 4
Dimensions & Weight
Depth: 15.2 in
Height: 5.1 in
Weight: 16.22 oz
Width: 5.1 in
Memory
Installed Flash Memory: 128 MB
Performance Metrics
Forwarding Performance (64-byte packets): 1.4 Mpps
Switching Capacity: 3.2 Gbps
Ports Information
Quantity: 16
Type: 10/100
RAM
Installed Size: 128 MB
