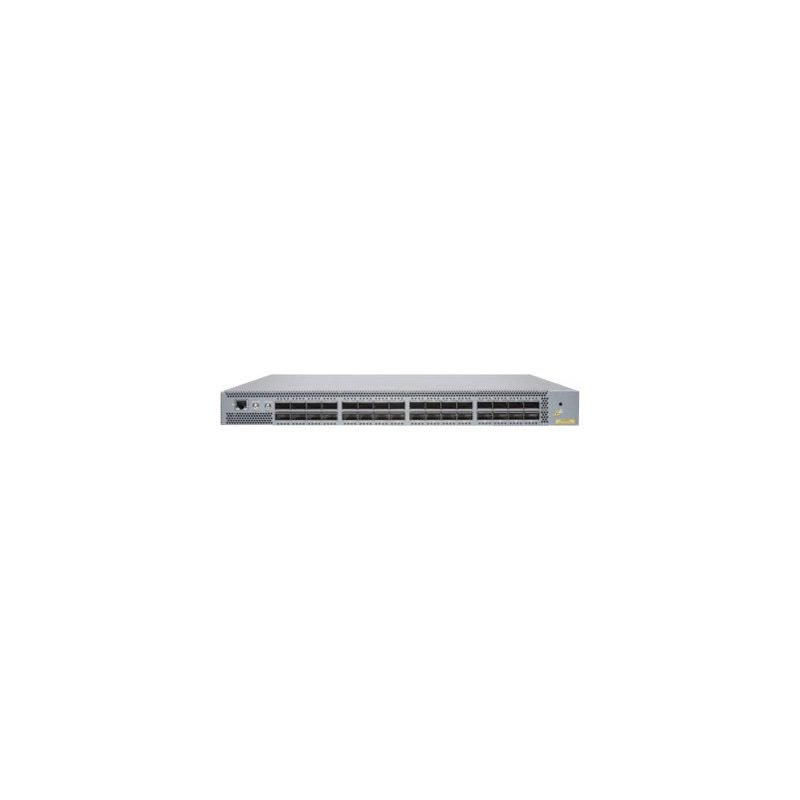

QFX5200-32C-AFO2 Juniper Networks 32-Port Ethernet Switch

Description

QFX5200-32C-AFO2 Technical Specifications

Juniper Networks QFX Series 32-Port Managed Rack-Mountable Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5200-32C
Packaged Quantity: 1
Chassis:
Airflow Direction: Front to back airflow
Built-in Devices: 64 GB SSD
Processor:
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 1.8 GHz
RAM:
Technology: SDRAM
Installed Size: 16 GB
Performance:
Switching Capacity: 2.4 Bpps, Throughput: 3.2 Tbps
Networking:
Type: Switch
Subcategory: Network hubs and switches
Subtype: 100 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 32
Manageable: Yes
Features: Redundant hot-swappable fans, 16MB packet buffer
Ports:
Qty: 32
Type: 100 Gigabit QSFP28 / 40 Gigabit QSFP+ (breakout compatible)
Interface Provided:
Interfaces: 1 x console management, 2 x SFP management, 1 x USB 2.0 management, 32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ (breakout compatible), 2 x 1000Base-T RJ-45 management
Power Device:
Type: Internal power supply
Hot-Plug: Yes
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Power Provided: 850 watt
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 480 watt
80 PLUS Certification: 80 PLUS Silver
System Requirements:
OS Required: JUNOS
Miscellaneous:
Color Category: Gray
Height (Rack Units): 1
Compliant Standards: UL 60950-1, EN 60825-1, FCC CFR47 Part 15 A, KN22 Class A, EN 300 386, EN 61000-3-2, China RoHS, CISPR 24, REACH, EN55024, ETSI 300 019, RoHS 6/6, ICES-003 Class A, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 60950-1, EN 55022 Class A, ETS 300 753, EN 61000-3-3, WEEE, IEC 60950-1, VCCI Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight:
Width: 17.4 inch
Depth: 20.5 inch
Height: 1.7 inch
Weight: 23.81 lbs
Environmental Parameters:
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
Humidity Range Storage: 5 – 95% (non-condensing)
