QFX5120-48Y-D-AFO2 Juniper Networks QFX5120-48Y Switch

Description

QFX5120-48Y-D-AFO2 Technical Specifications

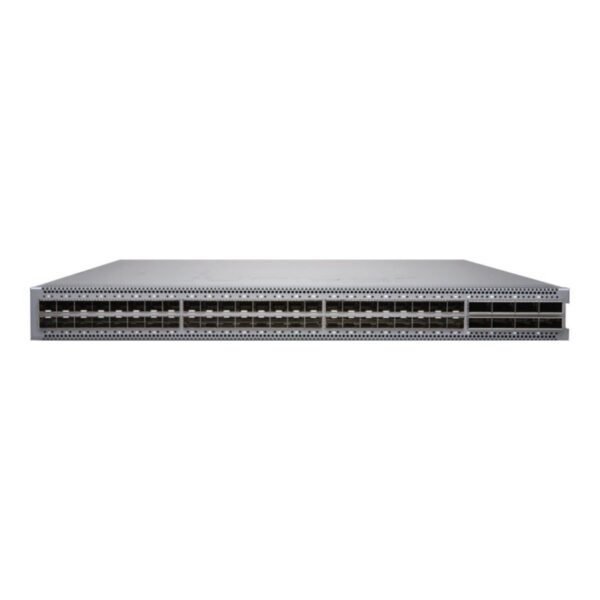

Juniper Networks QFX Series QFX5120-48Y Switch – 48 Managed Ports for Rack Mounting

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5120-48Y
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back
Built-in Devices: 64 GB SSD
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 2.2 GHz
RAM
Installed Size: 16 GB
Performance
Switching Capacity: 1.31 Bpps, 2 Tbps
Capacity
ECMP Paths: 64, Multiple Spanning Tree Protocol Instances: 64, Link Aggregation Groups: 80, IPv6 Prefixes (Unicast): 168,000, IPv4 Prefixes (Unicast): 351,000, Maximum Member Ports per LAG: 64, and more.
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 25 Gigabit Ethernet
Form Factor: Rack-mountable
Stackable: Yes
Ports Qty: 48
Software
Type: Junos OS
Power Device
Type: Internal power supply
Nominal Voltage: DC -48 -60 V
Dimensions & Weight
Width: 17.4 inch, Depth: 20.5 inch, Height: 1.7 inch, Weight: 23.7 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F, Storage Temperature: -40°F to 158°F.
