Description
QFX5120-48Y-AFO Technical Specifications

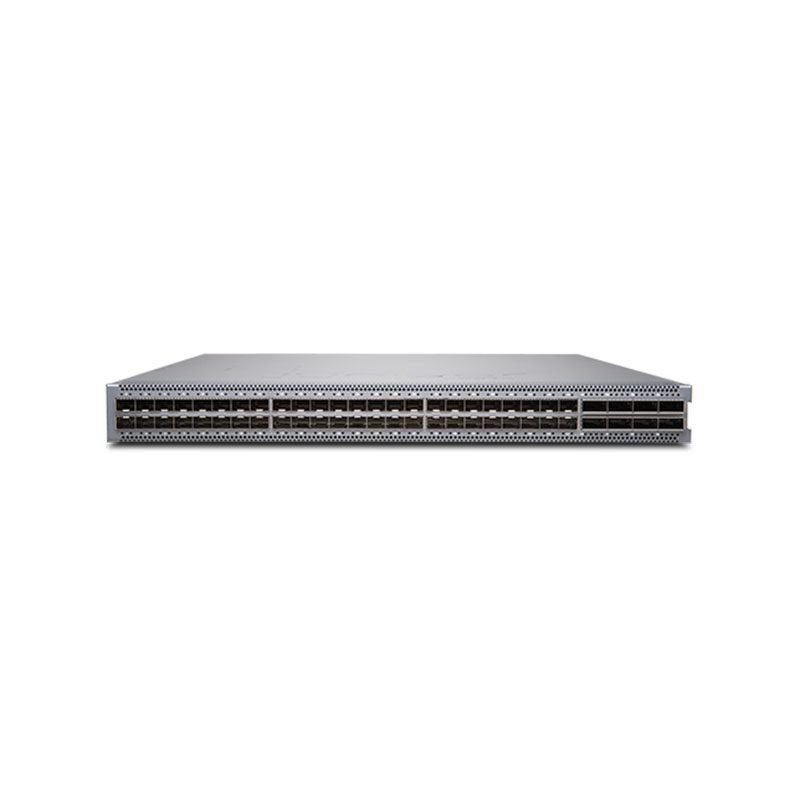

Juniper Networks QFX Series QFX5120-48Y Switch with 48 Managed Ports
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5120-48Y
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Processor
Installed Quantity: 1
Manufacturer: Intel
Clock Speed: 2.2 GHz
RAM
Installed Size: 16 GB
Flash Memory
Installed Size: 64 GB
Performance
Switching Capacity: 2 Tbps, 1.31 Bpps
Capacity
Mirroring Destination Ports: 4, Queues per Port: 10, Maximum Mirroring Sessions: 4, IPv4 Prefixes: 351,000, Link Aggregation Groups: 80, Virtual Interfaces: 4093, IPv6 Prefixes: 168,000
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 25 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Quantity: 48
Advanced Switching: Layer 3
Manageable: Yes
Power Device
Type: Internal power supply
Installed Quantity: 2
Power Provided: 650 watts
Nominal Voltage: AC 120/230 V
Power Consumption: 260 watts operational
Dimensions & Weight
Width: 17.4 inches, Depth: 20.5 inches, Height: 1.7 inches, Weight: 23.7 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F, Storage Temperature: -40°F to 158°F, Humidity Range: 5% – 90% non-condensing.
