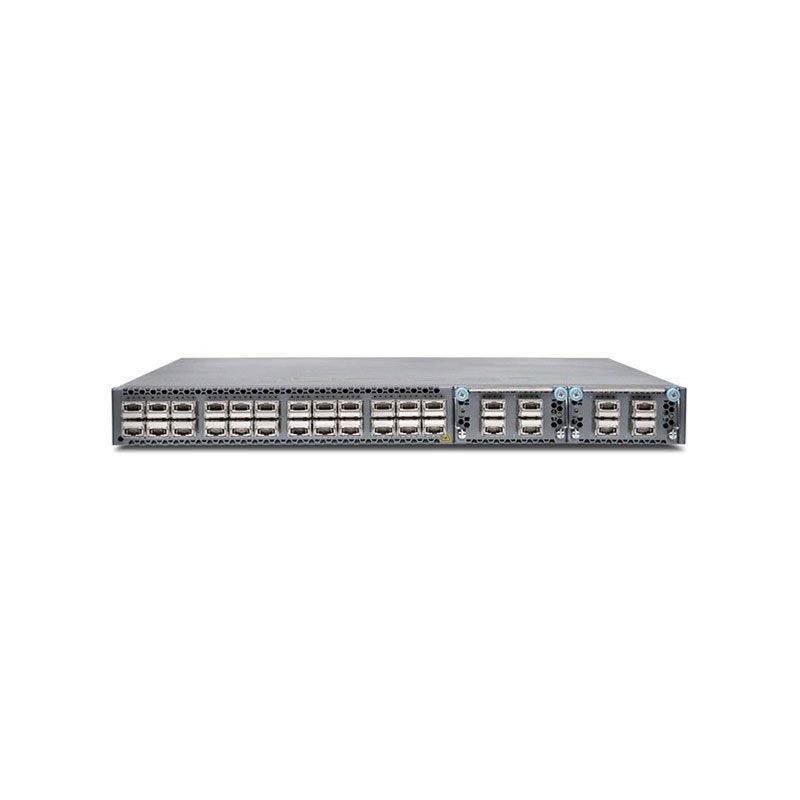

QFX5100-24Q-DC-AFO Juniper QFX5100 24-Port Switch

QFX5100-24Q-DC-AFO Technical Specifications

Juniper Networks QFX Series QFX5100-24Q Switch – 24 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5100-24Q
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back
Built-in Devices: 32 GB SSD
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 2
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 1.5 GHz
RAM
Installed Size: 8 GB
Performance
Switching Capacity: 1.44 Bpps, 2.56 Tbps
Capacity
Supports 64 MSTP instances, 52000 IPv6 multicast routes, 48000 ARP entries, and more.
Networking
Type: Switch; Subcategory: Network hubs and switches; Subtype: 40 Gigabit Ethernet; Form Factor: Rack-mountable; Ports Qty: 24
Ports
Type: 40 Gigabit QSFP+ (breakout compatible)
Power Device
Type: Internal power supply; Hot-Plug: Yes; Power Redundancy: Yes; Nominal Voltage: DC -36 to -72 V; Power Consumption: 161 watts
Environmental Parameters
Operating temperature ranges from 32°F to 104°F, with storage from -40°F to 158°F.
