Description
QFX5100-24Q-DC-AFI Technical Specifications

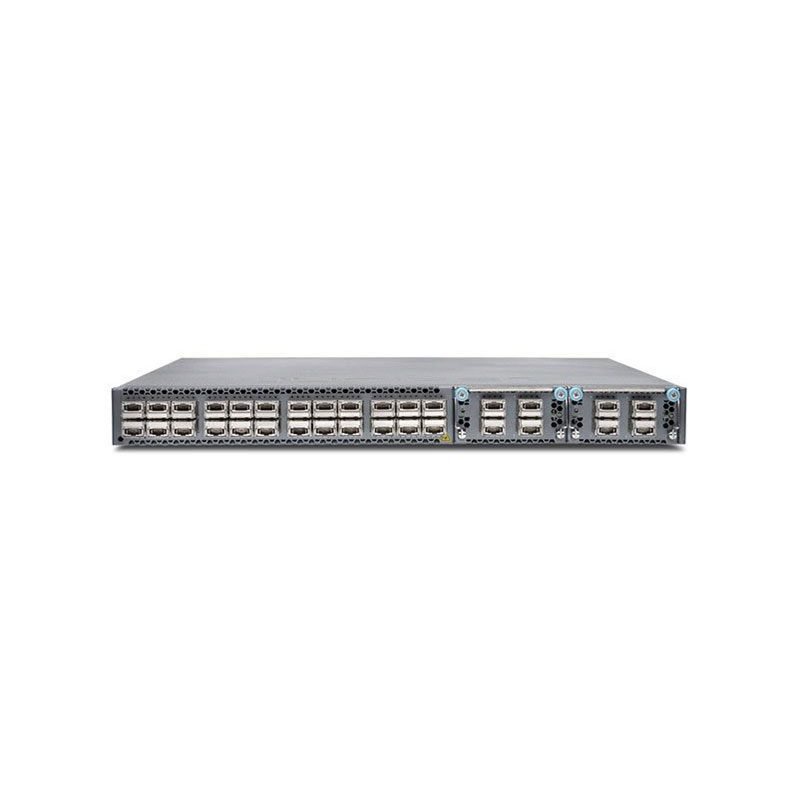

Juniper QFX5100-24Q-DC-AFI Layer 3 Switch
General Information
Manufacturer: Juniper Networks, Inc.
Manufacturer Part Number: QFX5100-24Q-DC-AFI
Brand: Juniper
Product Series: QFX5100
Product Name: QFX5100-24Q-DC-AFI Layer 3 Switch
Product Type: Layer 3 Switch
Technical Information
Interfaces/Ports:
Token Ring Port: No
LRE Port: No
Bypass: No
Modular: No
Management Port: Yes
USB: Yes
Port/Expansion Slot Details: 24 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology: 40 Gigabit Ethernet
I/O Expansions:
Total Expansion Slots: 26
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols:
Manageable: Yes
Management Options: CLI, Web-based Management, Telnet, SNMP v1/2/3, sFlow, MIB, VLAN, DHCP, QoS
Memory
Standard Memory: 8 GB
Reliability:
MTBF: 200000 Hours
Power Description:
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Dimensions: Height: 1.7″, Width: 20.5″, Depth: 17.4″
Weight: Approx. 21.60 lb
Miscellaneous
Certifications & Standards Safety:
CAN/CSA-C22.2 No. 60950-1 (2007), UL 60950-1 (2nd Ed.), EN 60950-1 (2005), IEC 60950-1 (2005)
EMC:
FCC 47CFR, Part 15 Class A (2009), EN 55022 Class A (2006), VCCI Class A (2007), AS/NZS CISPR22:2009
IEEE Standards:
802.1D, 802.1Q, 802.3ad, 802.1AB
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE, REACH, 80 Plus Silver, China RoHS
