QFX3600-I-16Q-AFO Technical Specifications

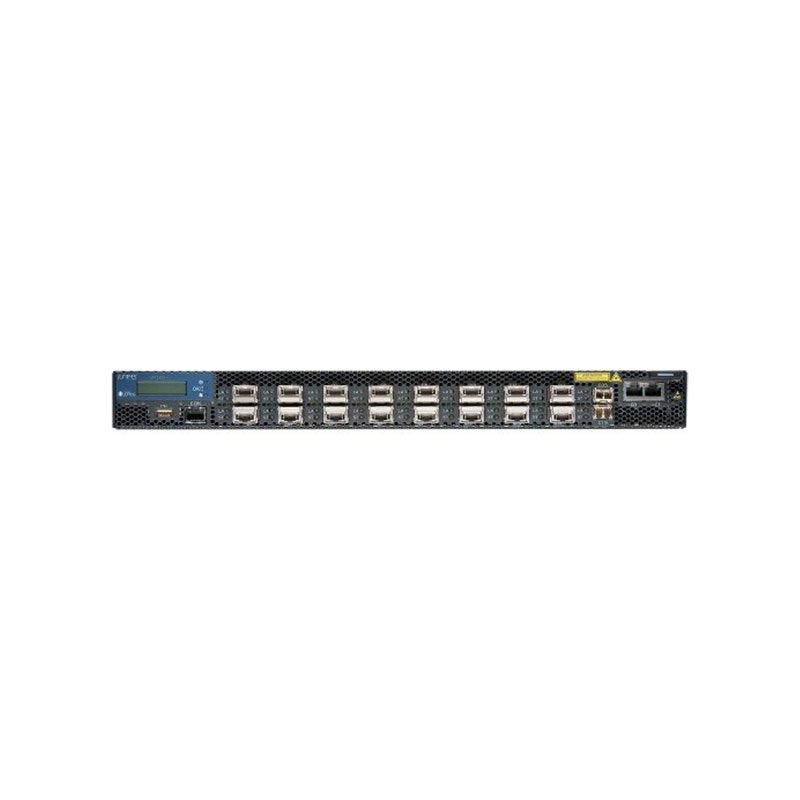

Juniper Networks QFX Series QFX3600-I QFabric Interconnect Switch with 16 Ports
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX3600-I QFabric Interconnect
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: Status LCD
Performance
Switching Capacity: 1.28 Tbps, Port-to-port latency: 3 µs
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 40 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Quantity: 16
Manageable: Yes
Features: High Availability, Redundant hot-swappable fans, Front to back airflow, Hot swap module replacement
Ports
Quantity: 16
Type: 40 Gigabit QSFP+
Interface Provided
Interfaces: 1 x USB Type A management, 2 x RJ-45 management, 1 x console management, 16 x QSFP+, 2 x SFP management
Power Device
Type: Internal power supply
Power Redundancy: Yes, with a scheme of 1+1 (optional power supply)
Power Consumption Operational: 345 watts
80 PLUS Certification: 80 PLUS Silver
System Requirements
OS Required: JUNOS
Miscellaneous
Height (Rack Units): 1
MTBF: 87,000 hours
Compliant Standards: EN55024, RoHS 6/6, GR-1089-CORE, EN 60825-1, EN55022 Class A, GR-63-CORE, VCCI Class A, EN 60950-1, CB, WEEE, UL 60950-1 Second Edition, FCC CFR47 Part 15, CAN/CSA C22.2 No. 60950-1, NEBS level 3, IEC 60950-1, CISPR 22, EN300-386, REACH, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width: 17 inch
Depth: 19.4 inch
Height: 1.7 inch
Weight: 30.86 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Min Storage Temperature: -40°F
Max Storage Temperature: 158°F
Humidity Range Operating: 5 – 90% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
