Description
QFX10002-72Q-T Technical Specifications

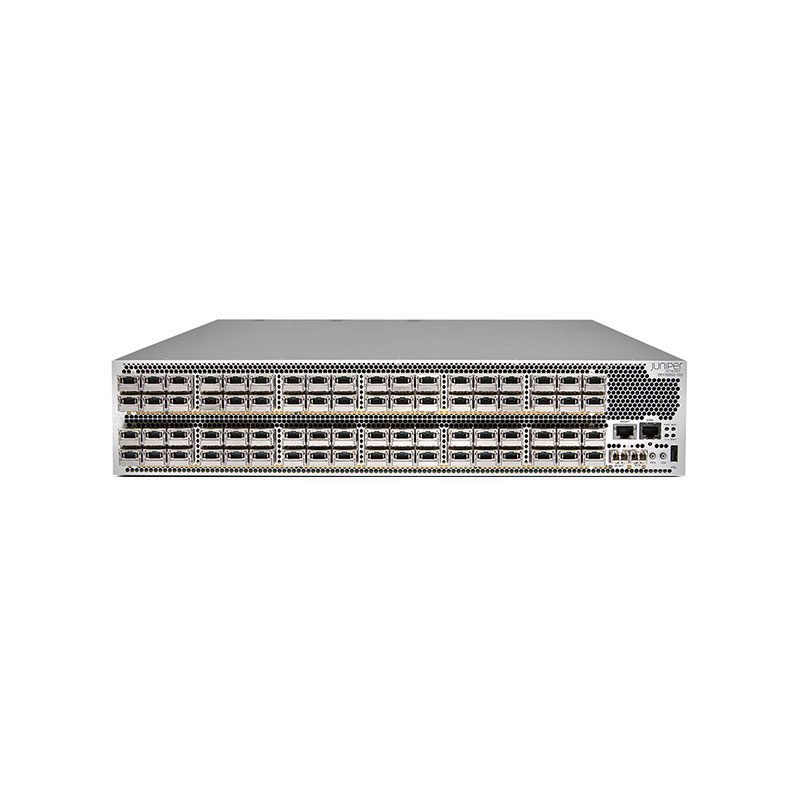

Juniper Networks QFX Series QFX10002-72Q switch with 72 managed ports
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX10002-72Q
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 2.5 GHz
RAM
Installed Size: 16 GB
Performance: Forwarding performance of 2 Bpps, Throughput of 5.76 Tbps
Capacity
IPv4 routes: 2,000,000; Virtual interfaces (VLANs): 4,000; IPv6 FIB: 256,000; GRE tunnels: 4,096; IPv4 FIB: 256,000; IPv6 routes: 2,000,000; IPv4 multicast routes: 128,000; IPv6 multicast routes: 128,000; Virtual output queues: 384,000; ARP entries: 256,000; ECMP ways: 64; Queues per port: 8
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 40 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 72
Advanced Switching: Layer 3
Routing Protocols: OSPFv3, BGP-4, and others
Manageable: Yes
Remote Management Protocol: TFTP, CLI, SNMP, and more
Features: DoS prevention, sFlow support, and numerous others
Compliant Standards: IEEE standards including 802.1D, 802.1Q, and more
Power Device
Type: Internal power supply
Installed Qty: 4
Max Supported Qty: 4
Power Provided: 1600 watts
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption: 1000 watts operational
Dimensions & Weight
Width: 17.4 inches
Depth: 31 inches
Height: 3.5 inches
Weight: 68.34 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F
Storage Temperature: -40°F to 158°F
Humidity Operating: 5 – 90% (non-condensing)
Humidity Storage: 5 – 95% (non-condensing)
