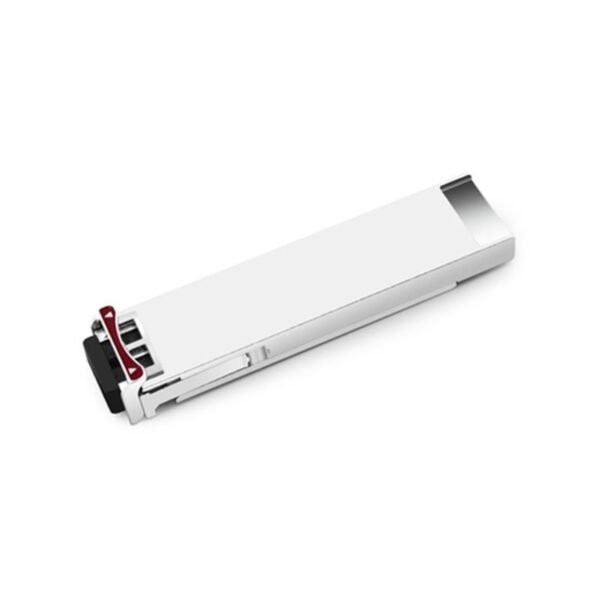

PAN-XFP-ZR Palo Alto Networks 10GBASE-ZR XFP Transceiver

PAN-XFP-ZR Technical Specifications

Palo Alto Networks 10GBASE-ZR XFP Transceiver (Single mode Fiber, 1550nm, 80km, LC, DOM)

FORM FACTOR: XFP
CONNECTOR / POLISH: LC-Duplex PC
INTERFACE: Single mode
TYPE: ZR
DISTANCE: 80 km
TEMPERATURE RANGE: 0°C – 70°C
BANDWIDTH: 8.5 Gbit/s – 11.1 Gbit/s
DIGITAL DIAGNOSTIC MANAGEMENT (DDM): Yes, internally calibrated
POWER CONSUMPTION: 3.5 W
CDR: TX and RX
SGMII: No
INBUILT FEC: No
POWER BUDGET (dB): 24 dB
TRANSMIT MIN/MAX: 0 dBm / 4 dBm
RECEIVER MIN/MAX: -24 dBm / -7 dBm (overload)
WAVELENGTH TX (TYPICAL): 1550 nm
WAVELENGTH TX (RANGE): 1530 – 1565 nm
WAVELENGTH RX (TYPICAL): 1550 nm
WAVELENGTH RX (RANGE): 1270 – 1600 nm
LASER: EML
RECEIVER TYPE: APD
MODULATION: NRZ
EXTINCTION RATIO: 9 dB
PROTOCOLS: 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64
