Description
MX80BASE-P Technical Specifications

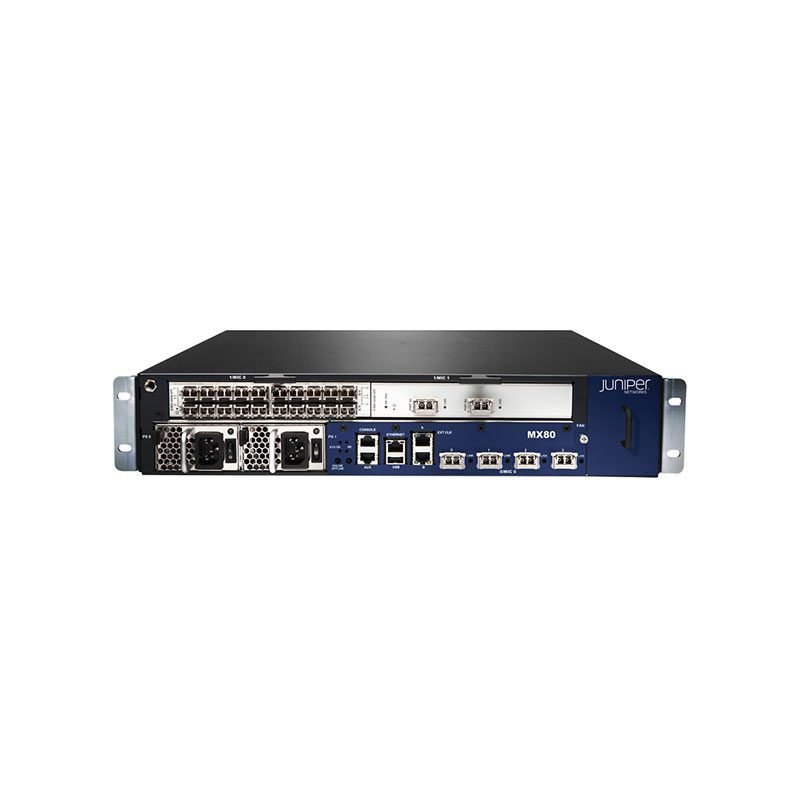

Juniper Networks MX-series MX80 Rack-Mountable Router
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX80
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 2
RAM
Technology: DDR2 SDRAM
Installed Size: 2 GB
Flash Memory
Installed Size: 4 GB
Performance
Switching Capacity: 80 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Data Link Protocol: TDM, PTP, 10 Gigabit Ethernet
Routing Protocol: MPLS, BGP, GRE
Key Features: Firewall, VPN support, USB port
Features: Supports Multicast Border Gateway Protocol (MBGP), redundant fans, and Virtual Routing and Forwarding (VRF). It also includes MPLS support, fast restoration, Quality of Service (QoS), Access Control List (ACL) support, NAT support, and more.
Expansion Slots
Total Expansion Slots: 2 (free) x Modular Interface Card (MIC)
Interface Provided
Interfaces: 4 x 10Gb Ethernet
Power Device
Type: Internal power supply
Power Redundancy: Yes
Installed Qty: 1
Max Supported Qty: 2
Miscellaneous
Color Category: Black
Height (Rack Units): 2
Compliant Standards: EN 60950, GR-63-CORE, AS/NZS 3548 Class A, and more.
Dimensions & Weight
Width: 17.5 inch
Depth: 23.5 inch
Height: 3.5 inch
Weight: 30.2 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 114.8°F
Humidity Range Operating: 5 – 90% (non-condensing)
