MX80-48T-AC-B Technical Specifications

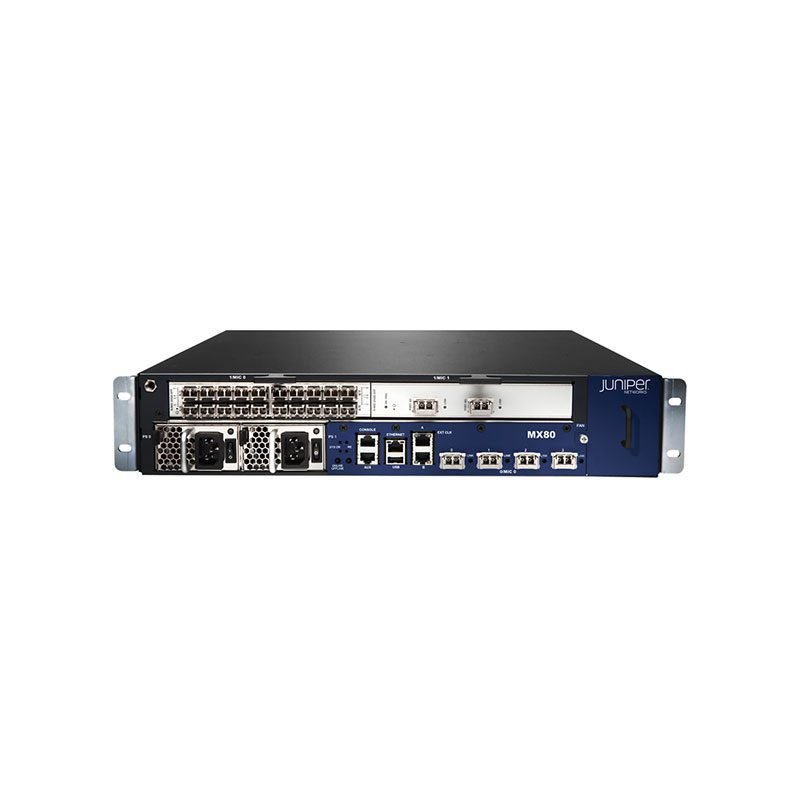

Juniper Networks MX-series MX80 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX80
Packaged Quantity: 1
Chassis
Installed Devices / Modules Qty: 1
Supported Devices / Modules Qty: 2
Modem
Type: None
Performance
Performance: Switching capacity of 80 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: BGP, GRE
Remote Management Protocol: SNMP 2, HTTP, SNMP 3
Key Features: USB port, VPN support
Features: Quality of Service (QoS), MPLS support, Manageable, VPN support
Expansion Slots
Expansion Slots: 2 (total) / 0 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP
Interface Provided
Interfaces: 1 x auxiliary – RJ-45, USB: 1 x, Management: 1 x console – RJ-45, 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x 10Base-T/100Base-TX – RJ-45
Power Device
Type: Internal power supply
Power Redundancy: Yes
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 376 watt
Miscellaneous
Height (Rack Units): 2
Compliant Standards: EN 60825-1, VCCI Class A ITE, CSA C22.2 No. 60950-00, UL 1950 Third Edition, NEBS, EN 60950, EN 61000-3-3, EN 61000-4-2, EN 61000-4-11, EN 61000-4-6, EMC, RoHS, EN 61000-4-3, FCC Part 15 A, EN55022 Class A, EN 61000-4-5, EN 61000-4-4, AS/NZS 3548 Class A, EN 61000-3-2, ETSI
Dimensions & Weight
Width: 17.5 inch
Depth: 23.5 inch
Height: 3.5 inch
Weight: 30.2 lbs
Environmental Parameters
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
