Description
MX480-PREMIUM3-AC Technical Specifications

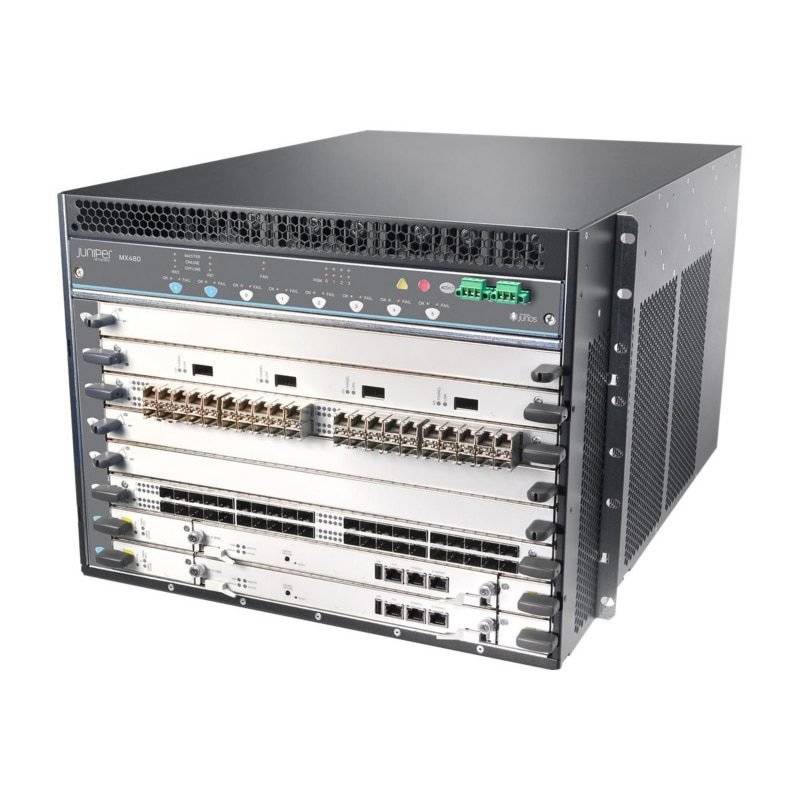

Juniper Networks MX-series MX480 Rack-Mountable Router
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX480
Packaged Quantity: 1
Chassis
Airflow Direction: Side-to-side airflow
Built-in Devices: Enhanced midplane
Installed Devices / Modules Qty: 2
Supported Devices / Modules Qty: 6
Performance
Performance: Switching capacity of 9 Tbps, with per-slot switching capacity of 1.5 Tbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Data Link Protocol: 400G, 40G, 1G, 100G, 10G Ethernet
Routing Protocol: GRE, BGP, MPLS
Network / Transport Protocol: IPSec
Features: Carrier Grade NAT, Virtual Extensible LAN, DDoS Protection, Network Virtualization, Layer 3 and Layer 2 switching, Firewall protection, Modular design, and more.
Compliant Standards: IEEE 802.1BR
Expansion Slots
Slots: 2 for Services and Routing Engine, 2 for Switch Control Board, totaling 6 expansion slots
Power Device
Type: Internal power supply
Power Redundancy: Yes
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Miscellaneous
Color Category: Black
Height (Rack Units): 8
Compliant Standards: GR-63-CORE, GR-1089-CORE, EMC
Dimensions & Weight
Width: 17.5 inches
Depth: 23.8 inches
Height: 14 inches
Weight: 179.9 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 114.8°F
Humidity Range Operating: 5 – 90%
