MX480-PREMIUM2-AC Technical Specifications

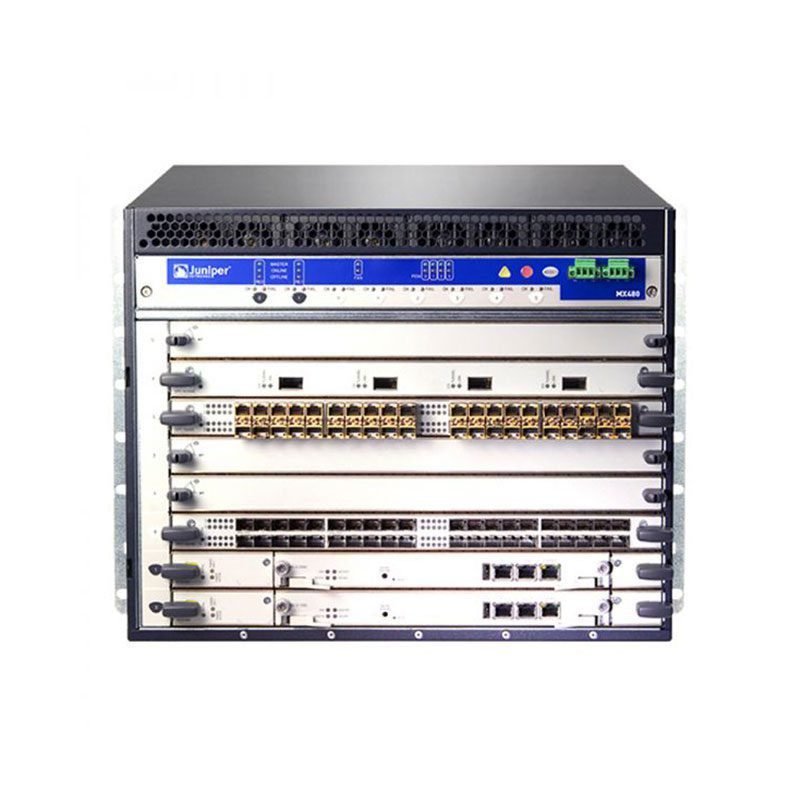

Juniper Networks MX-series MX480 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX480
Packaged Quantity: 1
Chassis
Supported Devices / Modules Quantity: 8
Processor
Installed Quantity: 1
Clock Speed: 2 GHz
RAM
Installed Size: 4 GB
Flash Memory
Installed Size: 1 GB, 1 GB
Hard Drive
Capacity: 40 GB
Modem
Type: None
Performance
Switching Capacity: 1.4 Tbps
Throughput: 120 Gbps
Forwarding Performance (large packets): 1.32 Bpps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Routing Protocol: BGP, GRE
Remote Management Protocol: SNMP 3, SNMP 2, HTTP
Status Indicators: Status
Key Features: VPN support
Features: Layer 3 switching, Midplane, VPN support, High Availability, Layer 2 switching, Modular design, Manageable, Quality of Service (QoS), MPLS Fast Reroute (FRR), MPLS support
Expansion Slots
Expansion Slots: 8
Interface Provided
Interfaces: Management: 1 x console – RJ-45, 1 x auxiliary – RJ-45, 1 x 10Base-T/100Base-TX – RJ-45
Power Device
Type: Internal power supply
Power Redundancy: Yes
Max Supported Quantity: 4
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 hertz
Miscellaneous
Height (Rack Units): 8
Compliant Standards: EMC, CSA C22.2 No. 60950-00, EN 61000-4-5, EN 60950, AS/NZS 3548 Class A, EN 61000-3-2, EN 61000-4-6, EN 61000-4-4, RoHS, EN55022 Class A, EN 61000-4-3, EN 61000-4-11, EN 60825-1, EN 61000-4-2, UL 1950 Third Edition, VCCI Class A ITE, NEBS, ETSI, EN 61000-3-3, FCC Part 15 A
Dimensions & Weight
Width: 17.5 inch
Depth: 23.8 inch
Height: 14 inch
Weight: 180.12 lbs
Environmental Parameters
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 5 – 90% (non-condensing)
