Description
MX240BASE3-DC Technical Specifications

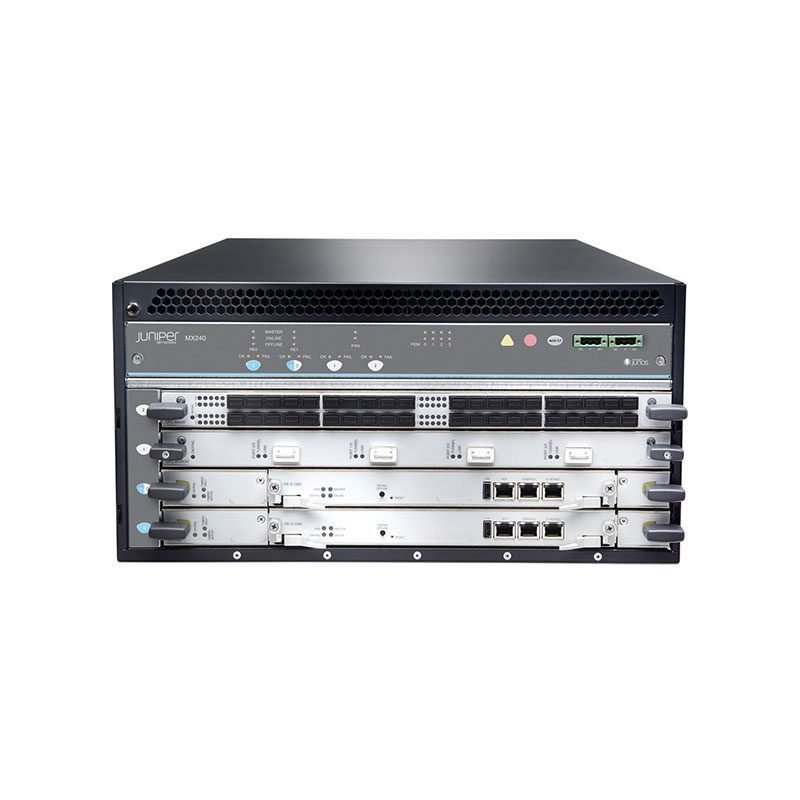

Juniper Networks MX-series MX240 Router Rack Mountable
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks MX-series
Model: MX240
Packaged Quantity: 1
Chassis
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 4
Performance: Switching capacity of 960 Gbps with a per-slot capacity of 240 Gbps
Capacity: Supports up to 128,000 virtual interfaces (VLANs)
Networking Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity Technology: Wired
Data Link Protocols: Frame Relay, TDM, ATM, Ethernet
Routing Protocols: GRE, BGP, MPLS
MAC Address Table Size: 1M entries
Remote Management Protocols: HTTP, SNMP 2, SNMP 3
Key Features: VPN support and Firewall capabilities
Features: VLAN support, MPLS Fast Reroute (FRR), Virtual Chassis technology, Switch Fabric Element Redundancy, IPv6 and IPv4 support, Quality of Service (QoS), High Availability, Intrusion Prevention System (IPS), MPLS VPN, Firewall protection.
Expansion Slots: 4 total / 4 free
Power Device: Internal power supply with optional redundancy
Nominal Voltage: DC -40 -72 V
System Requirements: Requires JUNOS
Miscellaneous: Color Category: Black
Compliant Standards: EN 61000-4-6, AS/NZS 3548 Class A, UL 1950 Third Edition, EN55022 Class A, EN 61000-3-2, EN 61000-4-4, FCC Part 15 A, VCCI Class A, EN 60950, EN 61000-4-3, EN 61000-3-3, GR-63-CORE, EN 61000-4-5, CSA C22.2 No. 60950-00, ETSI, EN 60825-1, EN 61000-4-2, GR-1089-CORE, EN 61000-4-11, EN 55022 Class A
Dimensions & Weight: Width: 17.5 inches, Depth: 23.8 inches, Height: 8.7 inches
Environmental Parameters: Minimum Operating Temperature: 32°F, Maximum Operating Temperature: 104°F, Humidity Range Operating: 5 – 90% (non-condensing).
