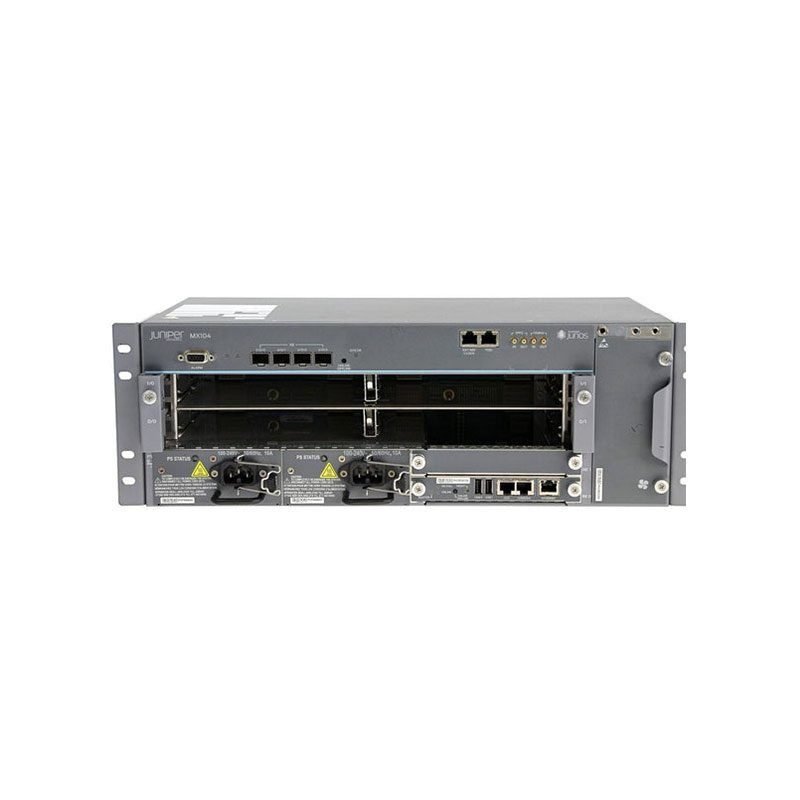

MX104-40G-DC-BNDL Juniper MX104 Edge Router Bundle

MX104-40G-DC-BNDL Technical Specifications

Juniper Networks MX104 Promotional Bundle Router

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: MX-series
Model: MX104 Promotional Bundle
Packaged Quantity: 1
Chassis
Airflow Direction: Side to side
Installed Modules: 1
Max Supported Modules: 6
RAM
Type: DDR3 SDRAM
Installed Size: 4 GB
Performance
Scaling Capacity: 40 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Modular: Yes
Connectivity: Wired
Data Link Protocol: PTP, TDM
Network Protocols: IPSec, DHCP
Remote Management: SNMP 1, 2, 3, CLI
Key Features: USB port, VPN support
Additional Features: Non-Stop Routing, Quality of Service, J-Flow, NAT support, NTP synchronization
Compliant Standards: IEEE 1588-2008
Expansion Slots
Total Slots: 2 (1 free for SRE), 4 (all free for MIC)
Interfaces
Alarm: 4 outputs, 4 inputs; 10Gb Ethernet: 4 x SFP+; Management: 1 x RS-232, 1 x console, 2 x USB
Power Device
Type: Internal, Hot-plug
Power Redundancy: Yes
Nominal Voltage: DC 24/-48/-60 V
System Requirements
OS: JUNOS
Miscellaneous
Color: Gray
Height: 3.5 Rack Units
Compliant Standards: UL, NEBS level 3, and more
Dimensions & Weight
Width: 17.5 inch
Depth: 9.5 inch
Height: 6.1 inch
Weight: 31.97 lbs
Environmental Parameters
Operating Temperature: -40 to 149 °F
Humidity: 5 – 85% non-condensing.
