MS390-48UX2-HW Technical Specifications

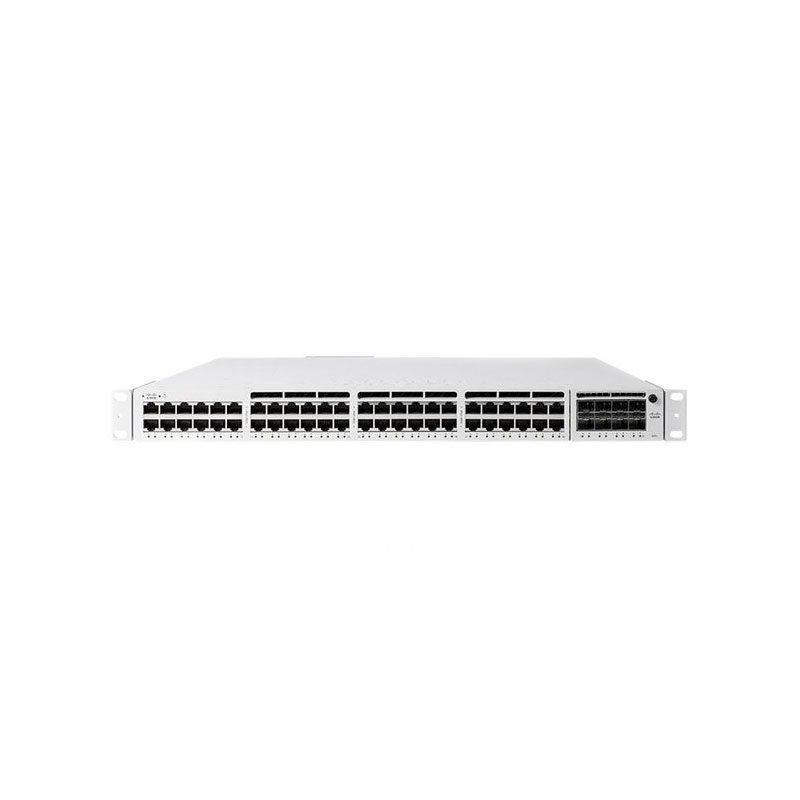

Cisco Meraki Cloud Managed MS390-48UX2 Switch – 48 Port
Dimensions & Weight
- Depth: 22.2 in
- Height: 1.7 in
- Weight: 20.04 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity Range: 5 – 95%
- Maximum Operating Temperature: 113 °F
- Minimum Operating Temperature: 23 °F
Header
- Brand: Cisco Meraki
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: MS390-48UX2
- Packaged Quantity: 1
- Product Line: Cisco Meraki Cloud Managed
- Product Series: MS390
Interface Provided
- Uplink: 2 x QSFP
- 48 x SFP (100/1000/2.5G/5G)
- 1 Management Port
Networking Features
This switch supports advanced Layer 3 switching with features like DHCP relay, port mirroring, and robust security protocols. It is designed for high performance with a switching capacity of 640 Gbps and a forwarding rate of 476.19 Mpps.
Power Device
- Power Consumption Operational: 843.8 Watts
- Power Redundancy: Optional
