Description
MS390-48P-HW Technical Specifications

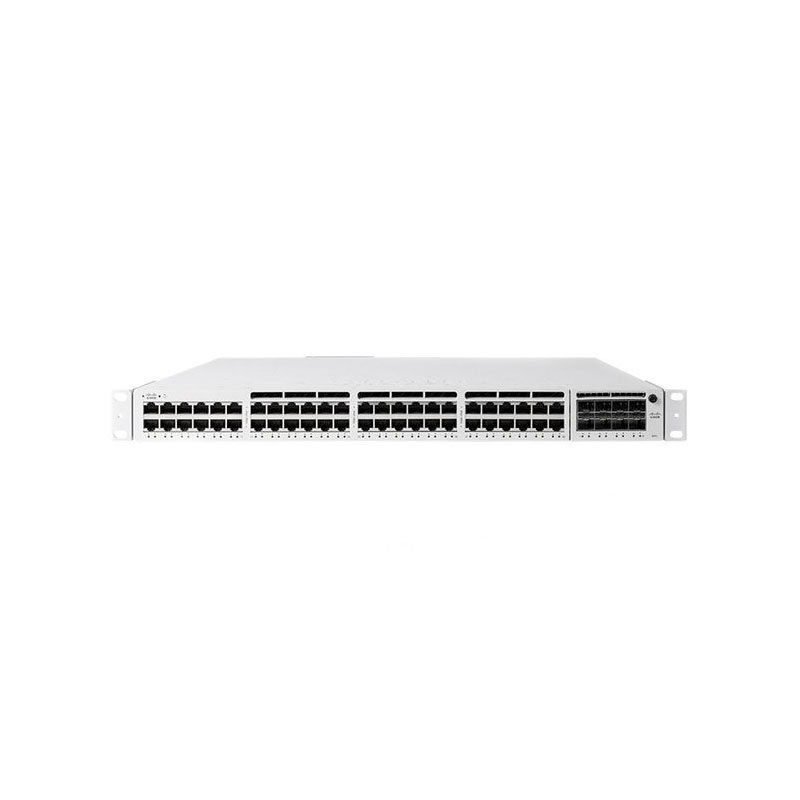

Cisco Meraki Cloud Managed MS390-48P Switch – 48 Port
Dimensions & Weight
- Depth: 17.7 in
- Height: 1.7 in
- Weight: 16.73 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity Range: 5 – 95%
- Maximum Operating Temperature: 113 °F
- Minimum Operating Temperature: 32 °F
Header
- Brand: Cisco Meraki
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: MS390-48P
- Ethernet Technology: Gigabit Ethernet
- Packaged Quantity: 1
- Product Line: Cisco Meraki Cloud Managed
- Product Series: MS390
Interface Provided
- Comments: PoE
- Connector Type: RJ-45
- Quantity: 48 port Network Switch
- Type: 1000Base-T
- Management Ports: 1
- Network Stack Device Ports: 2
Miscellaneous
- Authentication Method: RADIUS
- Color Category: White
- Compliant Standards: AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, and more
- Height (Rack Units): 1
- MTBF: 305,870 hours
- Rack Mounting Kit: Included
Networking
- Advanced Switching: Layer 3
- Compliant Standards: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, and others
- Features: ACL support, Auto-negotiation, DHCP features, and more
- Form Factor: Rack-mountable
- MAC Address Table Size: 32K entries
- Manageable: Yes
- Max Units In A Stack: 8
- PoE Budget: 437 W
- Ports Quantity: 48
- Power Over Ethernet (PoE): Yes
- Remote Management Protocol: DHCP, IPv4, IPv6, and more
- Routing Protocol: OSPF, RSTP, and others
- Stackable: Yes
- Subcategory: Network hubs and switches
- Subtype: Gigabit Ethernet
- Type: Switch
Performance
- Forwarding Rate: 190.48 Mpps
- Stacking Bandwidth: 480 Gbps
- Switching Capacity: 256 Gbps
Ports
- Quantity: 48
- Type: 10/100/1000 (PoE)
Power Device
- Frequency Required: 50 – 60 Hz
- Hot-Plug: Yes
- Installed Quantity: 1
- Max Supported Quantity: 2
- Nominal Voltage: AC 120/230 V
- Operational Power Consumption: 555 Watt
- Standby Power Consumption: 92.6 Watt
- Power Provided: 715 Watt
- Power Redundancy: Optional
- Redundancy Scheme: 1+1 (with optional power supply)
- Type: Internal power supply
Slot Provided
- Free Quantity: 1
- Total Quantity: 1
- Type: Expansion slot
