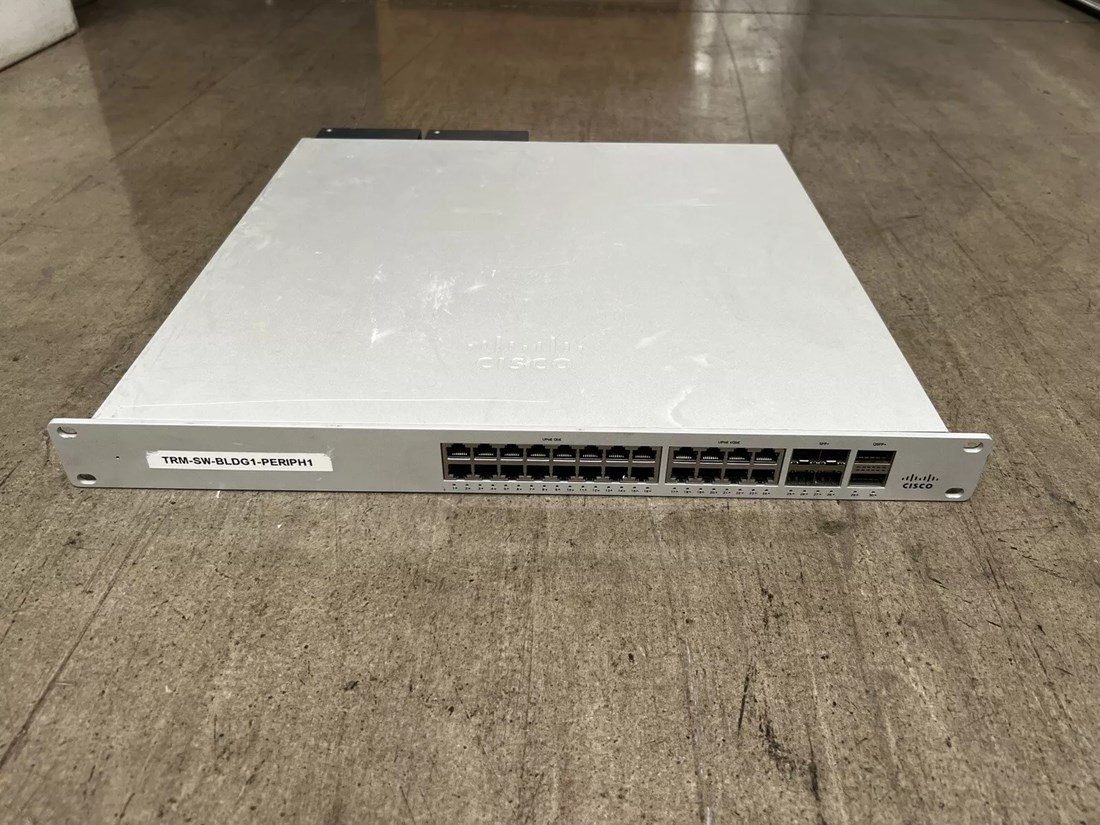

MS355-24X-HW Cisco Meraki 24-Port Cloud Managed Switch

Description

MS355-24X-HW Technical Specifications

Cisco Meraki Cloud Managed MS355-24X 24-Port Switch

Environmental Parameters
Operating Humidity: 5 – 95% (non-condensing)
Max Operating Temperature: 113 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS355-24X
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS355
Interface Provided
Comments: Stacking
Qty: 2
Comments: Uplink
Connector Type: SFP+
Qty: 4 SFP+
Type: 10Gbit LAN
Connector Type: RJ-45
Qty: 8
Type: 100/1000/2.5G/5G/10GBase-T
Qty: 16
Type: 1000Base-T
Miscellaneous
Authentication Method: RADIUS
Color Category: Silver
Compliant Standards: C-Tick, CSA, IC, RoHS
Height (Rack Units): 1
MTBF: 321,515 hours
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features: ARP support, Auto-negotiation, BPDU, Broadcast Storm Control, Crossover detection, DHCP relay, Dynamic ARP Inspection, E-mail alert, Flow control, LLDP support, Loop Guard, Port mirroring, Push notification, RSTP support, Role-Based Access Control, Root Guard, SMS alert, STP support, Static routing, Syslog support, UDLD, VLAN support
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9600 bytes
MAC Address Table Size: 512K entries
Manageable: Yes
Max Units In A Stack: 8
Ports Qty: 24
Remote Management Protocol: SNMP
Routing Protocol: IGMP, OSPFv2, Static IP routing, VRRP
Stackable: Yes
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 50/60 Hz
Hot-Plug: Yes
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 867 Watts
Power Provided: 370 Watts
Type: Internal power supply
Dimensions & Weight
Depth: 23.4 in
Height: 1.7 in
Weight: 14.55 lbs
Width: 19.1 in
Capacity
Type: Tagged VLANs
Value: 4096
Performance
Type: Forwarding rate
Value: 202.38 Mpps
Type: Switching capacity
Value: 272 Gbps
Ports
Total: 24 Ports
Qty: 8
Type: 1/2.5/5/10GBase-T
Ports (2nd)
Qty: 16
Type: 10/100/1000
Ports (3rd)
Qty: 4
Type: 10 Gigabit SFP+
Ports (4th)
Qty: 2
