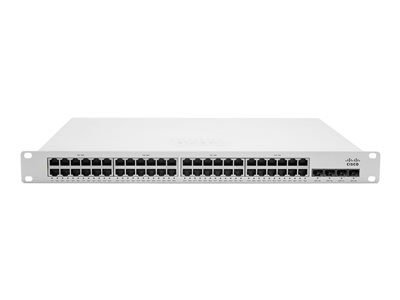

MS350-48FP-HW Cisco Meraki Cloud-Managed 48-Port Switch

Description

MS350-48FP-HW Technical Specifications

Cisco Meraki Cloud-Managed MS350-48FP Switch

Capacity
Type: Forwarding table entries
Value: 96,000
Type: Tagged VLANs
Value: 4,096
Dimensions & Weight
Depth: 21.8 in
Height: 1.7 in
Weight: 14.99 lbs
Width: 19.1 in
Ethernet Technology: Gigabit Ethernet
Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Max Operating Temperature: 113 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS350-48FP
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS350
Interface Provided
Comments: PoE+
Connector Type: RJ-45
PoE Power: 25.5 W
Qty: 48
Type: 1000Base-T
Comments: Uplink
Connector Type & Qty: 4 SFP+
Type: 10Gbit LAN
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: C-Tick, CSA, IC, RoHS
Height (Rack Units): 1
MTBF: 516,000 hours
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features: Access Control List (ACL) support, Auto-negotiation, Auto-uplink, Broadcast Storm Control, Crossover detection, DHCP client, E-mail alerts, Firmware upgradable, IGMP snooping, LLDP support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP), SMS alerts, Spanning Tree Protocol (STP), Tagged VLAN
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9600 bytes
Manageable: Yes
PoE Budget: 740 W
Ports Qty: 48
Power Over Ethernet (PoE): PoE+
Remote Management Protocol: SNMP 2c
Routing Protocol: OSPFv2, Static IP routing
Stackable: Yes
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Non-blocking switching capacity
Value: 176 Gbps
Ports
Qty: 48 Port
Type: 10/100/1000 (PoE+)
Ports (2nd)
Qty: 4
Type: 10 Gigabit SFP+ (uplink)
Power Device
Frequency Required: 50/60 Hz
Hot-Plug: Yes
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 885 Watt
Power Provided: 1025 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Internal power supply
