MS250-48FP-HW Technical Specifications

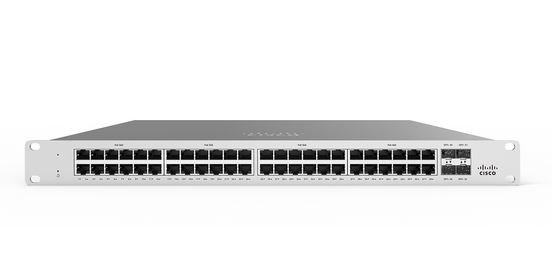

Cisco Meraki MS250-48FP 48-Port Switch
Dimensions & Weight
Depth: 20.3 in
Height: 1.7 in
Weight: 12.83 lbs
Width: 19.1 in
Ethernet Technology: Gigabit Ethernet
Environmental Parameters
Operating Humidity Range: 5 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Compatibility: PC
Manufacturer: Meraki
Model: MS250-48FP
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS250
Interface Provided
Comments: PoE+
Connector Type: RJ-45
PoE Power: 25.5 W
Ports Quantity: 48
Type: 1000Base-T
Comments: Uplink
Connector Type: SFP+
Quantity: 4 SFP+
Type: 10GBase-X
Quantity: 2
Type: Network stack device
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Height (Rack Units): 1
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Connectivity Technology: Wired
Features: Supports 802.1x authentication, Access Control Lists (ACL), Auto-negotiation, Auto-uplink, and more.
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9600 bytes
MAC Address Table Size: 32K entries
Manageable: Yes
Max Units In A Stack: 8
PoE Budget: 740 W
Ports Quantity: 48
Power Over Ethernet (PoE): PoE+
Remote Management Protocol: HTTP, SNMP
Routing Protocol: IGMP, OSPFv2, VRRP
Stackable: Yes
Status Indicators: Status
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Stacking bandwidth
Value: 80 Gbps
Type: Switching capacity
Value: 176 Gbps
Ports
Quantity: 48
Type: 10/100/1000 (PoE+)
Ports (2nd)
Quantity: 4
Type: SFP+
Power Device
Frequency Required: 40 – 60 Hz
Nominal Voltage: AC 120/230 V
Power Redundancy: Yes
Type: Internal power supply
