Description
MS225-24-HW Technical Specifications

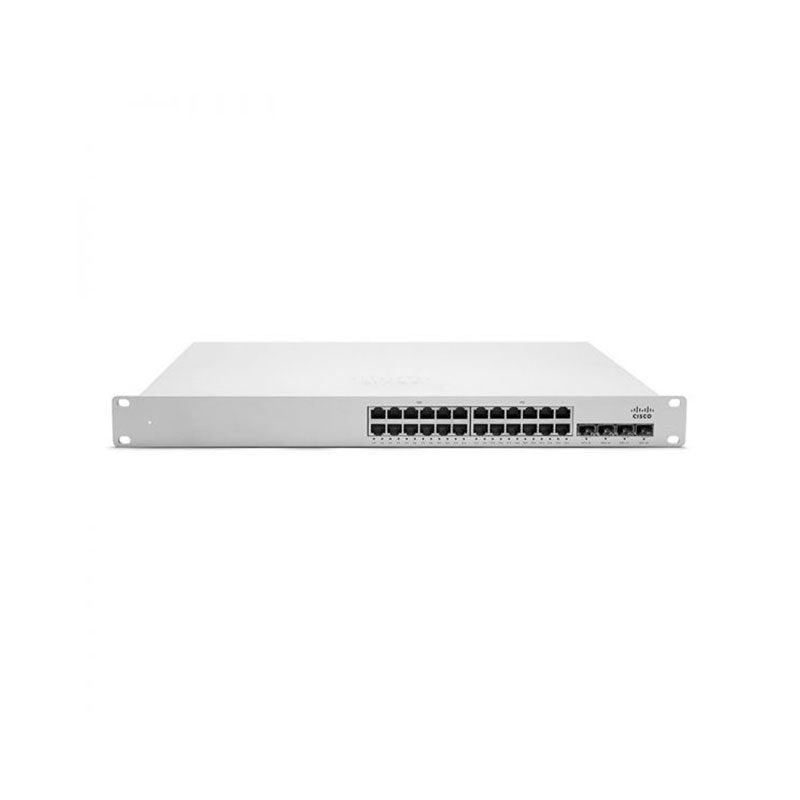

Cisco Meraki MS225-24 Switch 24 Port
Dimensions & Weight
Depth: 9.8 in
Height: 1.7 in
Weight: 6.02 lbs
Width: 19.1 in
Environmental Parameters
Operating Humidity: 5 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS225-24
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS225
Interface Provided
Comments: Uplink
Connector Type: SFP+ (4 ports, 10GBase-X), RJ-45 (24 ports, 1000Base-T)
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Networking
Compliant Standards: IEEE 802.1ab, 802.1D, 802.1p, 802.1Q, 802.1w, 802.1x, 802.3ad
Features: 802.1x authentication, ACL support, auto-negotiation, cable test, and more. Rack Mounting Kit included.
Performance
Forwarding Performance: 95.24 Mpps
Stacking Bandwidth: 80 Gbps
Switching Capacity: 128 Gbps
Power Device
Nominal Voltage: AC 120/230 V
Power Redundancy: Yes
