MPU4032DAC-001 Avocent MergePoint Unity 32-Port KVM Switch

MPU4032DAC-001 Technical Specifications

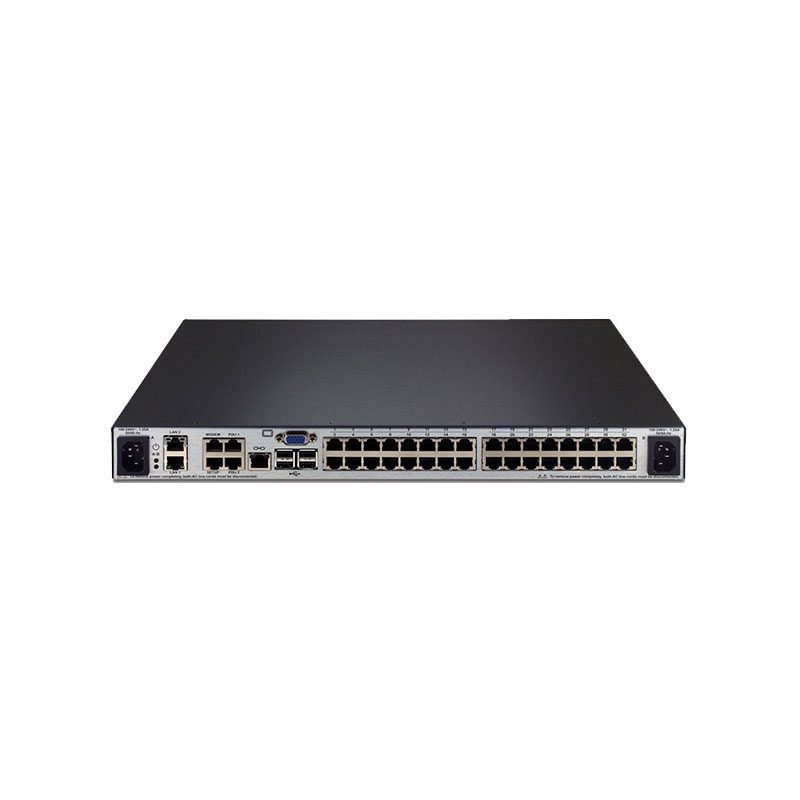

Avocent MergePoint Unity MPU4032DAC Digital KVM Switch 32 Port 1U Rack-mountable

Manufacturer: Avocent
Manufacturer Part #: MPU4032DAC-001
Device Type: KVM Switch – 32 Ports
Enclosure Type: 1U Rack-mountable
Ports: 32 KVM Ports
Local Users: 1
IP Users: 4
Connection: Twisted Pair (Cat5)
Keyboard/Mouse Interface: USB
Remote Management: HTTP, SSH
Authentication: Secure Shell (SSH), LDAP
Max Resolution: 1280 x 1024 @ 75 Hz
Expansion/Connectivity:

• Keyboard/Mouse/Video/Serial: 32 RJ-45 Ports
• Display/Video: 1 VGA (15 Pin HD D-sub), 2 RJ-45 Hi-speed (10Base-T/100Base-TX/1000Base-T)
• USB: 5 x 4 Pin USB Type A
• Serial: 3 x RS-232 – RJ-45

Power:
Power Supply: Internal, with 2 units installed and a maximum capacity of 2.
