MPC5E-40G10G Juniper Networks Expansion Module with Enhanced Throughput

MPC5E-40G10G
MPC5E-40G10G

  • Fast Shipping

    Receive products in amazing time

  • Easy Returns

    Return policy that lets you shop at ease

  • Always Authentic

    We only sell 100% authentic products

  • Secure Shopping

    Your data is always protected

$237,928.00

Highlights

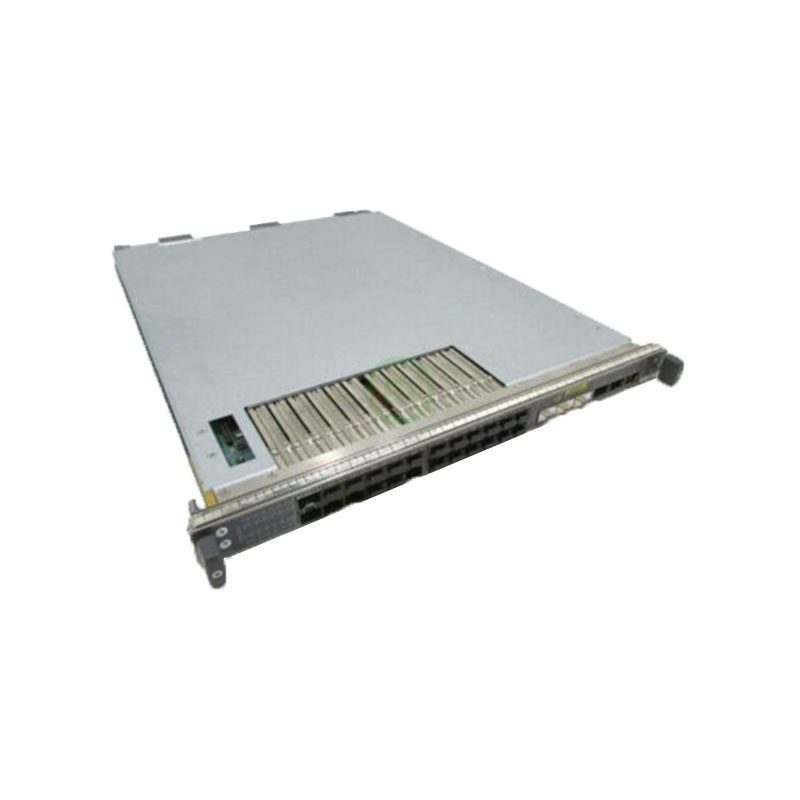

MPC5E-40G10G Overview

This fixed-port expansion module from Juniper Networks delivers six 40-Gigabit Ethernet ports and twenty-four 10-Gigabit Ethernet ports, achieving a remarkable throughput of up to 240Gbps. It supports a maximum of 32,000 queues per slot and operates in LAN-PHY mode at 10.3125Gbps per port, with an expandable MTU size of 9,192 bytes.

SKU: MPC5E-40G10G Category: Tags: , , , , , Brand:

Description

MPC5E-40G10G Technical Specifications

Juniper Networks Expansion Module

Manufacturer: Netscreen
Brand: Juniper Networks
Product Line: Juniper Networks
Model: MPC5E-40G10G
Packaged Quantity: 1
Performance
Throughput: 240 Gbps
Networking
Type: Expansion module
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Link Protocol: MLPPP
Network / Transport Protocol: L2TP
Remote Management Protocol: CLI
Status Indicators: Fail, Link OK
Features: Layer 2.5 switching, Link Aggregation Control Protocol (LACP), Timing support, GRE tunneling, Weighted Random Early Detection (WRED), Strict Priority Queuing (SPQ), Class of Service (CoS), NAT support, Virtual Route Redundancy Protocol (VRRP) support, Tunneling, Weighted Round Robin (WRR) queuing, Quality of Service (QoS), Load balancing, Layer 3 switching, VLAN support, Layer 2 switching
Compliant Standards: IEEE 802.1Q
Ports
Qty: 6
Type: 40 Gigabit QSFP+
Ports (2nd)
Qty: 24
Type: 10 Gigabit SFP+
Interface Provided
Interfaces: 6 x 40Gb Ethernet – QSFP+, 24 x 10Gb Ethernet – SFP+
Power Device
Power Consumption (Operational): 460 watts
System Requirements
OS Required: JUNOS
Miscellaneous
Color Category: Gray
Dimensions & Weight
Weight: 20.99 lbs
Environmental Parameters
Max Operating Temperature: 104 degrees Fahrenheit
Compatibility
Compatible With: Juniper Networks MX-series MX240, MX480, MX960

Additional information

Weight1.5 lbs
Dimensions21.6 × 21.6 × 4.4 in
