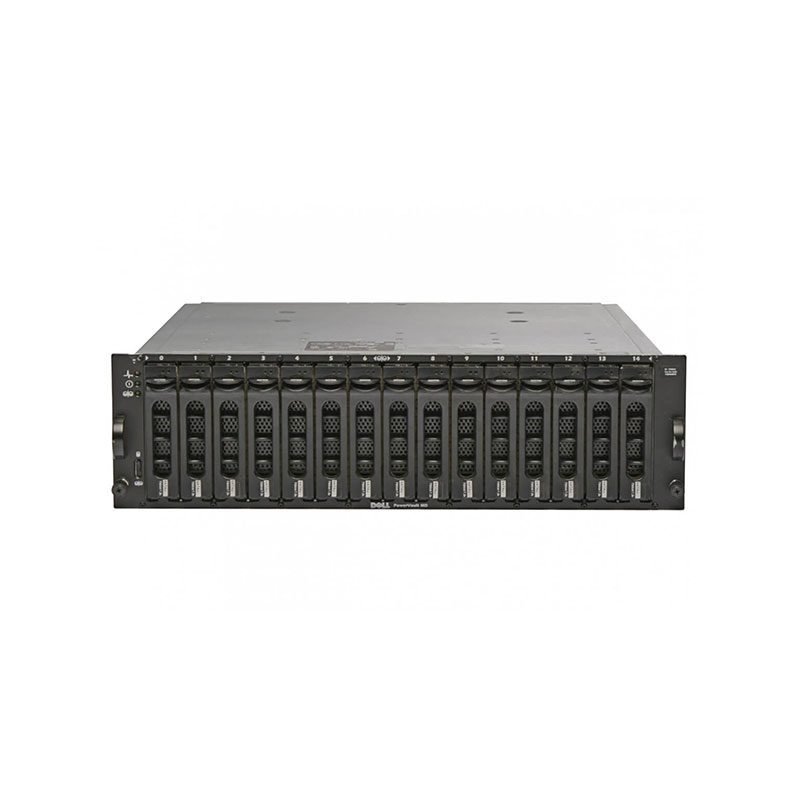

MD1000 Dell PowerVault Storage Enclosure with Power Supply

MD1000 Technical Specifications

Dell PowerVault Storage Enclosure with EMM Power Supply

GENERAL INFORMATION:
Manufacturer: Dell
Manufacturer Part Number: MD1000
Product Name: PowerVault MD1000
DRIVES AND CAPACITY:
Supports up to fifteen (15) 3.5-inch SAS or SATA hot-plug hard disk drives.
Installed Hard Drive: None.
DRIVE PERFORMANCE AND CAPACITIES:
Available SAS drives include 15,000 RPM models in 73GB, 146GB, 300GB, 450GB, and 600GB, as well as 10,000 RPM options in 300GB, 400GB, and 600GB. Nearline SAS (7,200 RPM) drives can be found in 500GB, 750GB, or 1TB capacities, while SATA II drives come in 250GB, 500GB, 750GB, 1TB, and 2TB sizes. Energy-efficient SATA II drives (5,400 RPM) are also available in 1TB and 2TB sizes.
LED INDICATORS:
Front Panel features a two-color LED indicator for system status along with two single-color indicators for power and split mode.
HARD DRIVE CARRIER:
Includes one single-color activity LED and one two-color status indicator per drive.
POWER SUPPLIES:
Equipped with 2x 478W (maximum continuous) and 550W (peak) power supplies, with a maximum heat dissipation of 1430 BTU/hour. Input voltage ranges from 100-240V (actual 90-264V), with a frequency range of 47-63Hz and an amperage of 7.2A at 100V, 3.6A at 200V.
