K2Q36B Technical Specifications

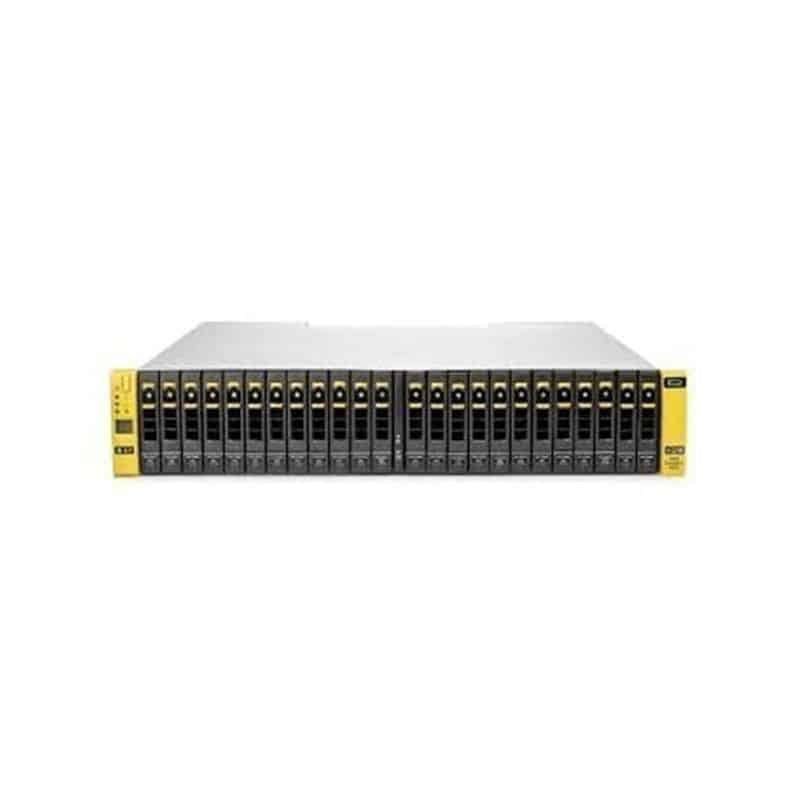

HPE 3PAR 8200 2N+SW Storage Base Unit
Cable Details
Included Qty: 2
Chassis
Supported Device Modules: 24 Bays,
Supported Interface: Serial Attached SCSI (SAS)
Dimensions & Weight
Depth: 26.6 in
Height: 3.5 in
Weight: 48.72 lbs
Width: 19 in
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Expansion Slots
Type: PCIe
Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 24
Total Qty: 24 Bays
Cable
Connectivity Details Length: 6.6 ft
Connectivity Details Type: Serial Attached SCSI cable
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F
Header
Brand: HPE
Compatibility: PC
Manufacturer: HP 3Par Products
Model: StoreServ 8200 2-node Storage Base
Packaged Quantity: 1
Product Line: HPE 3PAR
Interface Provided
Connector Type: SFP (mini-GBIC)
Interface (Storage): 16Gb Fibre Channel
Qty: 4
Interface (Storage): Ethernet 1000
Purpose Location: Management
Qty: 1
Miscellaneous
Color Category: Black, Silver
Compliant Standards: BSMI Class A, C-Tick, CAN/CSA C22.2 No. 60950-1, China RoHS, CISPR 22:2008, CISPR 24:2010, CNS 14336, CNS13438:2006, cTUVus, EN 60950-1, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 62479:2010, EN55022:2010 Class A, EN55024:2010, FCC CFR47 Part 15 B, FCC Class A certified, GOST-R, IC Class A, ICES-003 issue 5 Class A, IEC 60950-1:2005 Second Edition, IEC 61000-3-2:2005, IEC 61000-3-3:2008, KCC, RoHS, TUV T, UL 60950-1 Second Edition, VCCI Class A ITE, WEEE
Height (Rack Units): 2
Included Accessories: 2x 1U rack filler panels, 4x 16Gb Short Wave FC SFP transceivers
Pricing Type: Field installation
Processor
Installed Qty: 2
Slot Provided
Free Qty: 2
Total Qty: 2
Storage
HDD Array External Interface: 16Gb Fibre Channel
HDD Array External Interface Class: Fibre Channel
Rack-mountable: Yes
Type: Hard drive array
Storage Controller
Installed Qty: 2
Interface Type: Serial Attached SCSI
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6
Type: RAID
