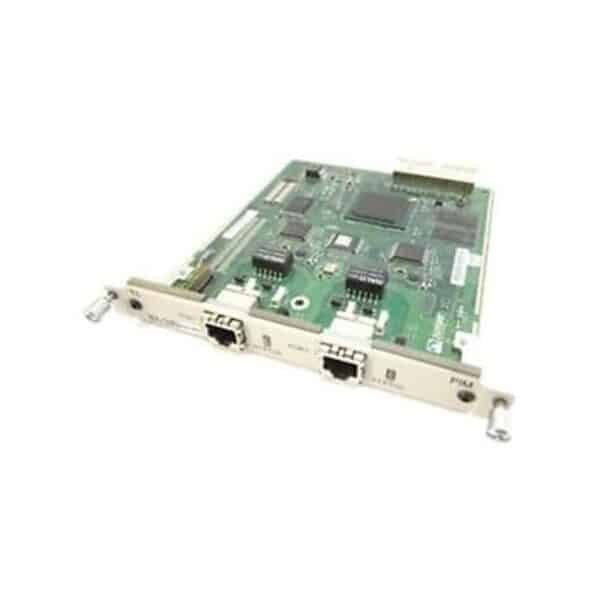

JX-2E1-RJ48-S Juniper Networks Dual-port E1 PIM Module for Enhanced Connectivity

JX-2E1-RJ48-S Technical Specifications

Juniper Networks Dual-port E1 Physical Interface Modules (PIM) – DSU/CSU

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks
Model: Dual-port E1 Physical Interface Modules (PIM)
Packaged Quantity: 1
Modem Type: DSU/CSU
Form Factor: Internal
Connectivity Technology: Wired
Max Transfer Rate: 2.048 Mbps
Protocols & Specifications: HDLC
Features: Built-in bit error rate tester (BERT)
Line Properties:
Line Rate: Fractional E-1/E-1
Line Coding Format: HDB3
Framing Format: G.704, NO-CRC4
Networking:
Compliant Standards: ANSI T1.403, ANSI T1.102, ANSI T1.107
Interface Provided:
Interfaces: 2 x network – E1-FE1 – RJ-48
Slot Required:
Compatible Slots: 1 x expansion slot
Miscellaneous:
Compliant Standards: CSA 22.2 No. 60950, EN 61000-4-2, EN55024, EN 61000-4-6, VCCI Class B ITE, EN 61000-4-5, IC CS-03, UL 60950 Third Edition, IEC 60950, FCC Part 15 B, EN 60950, FCC Part 68, BSMI, EN 61000-4-11, ETSI, EN55022 Class B, EN 61000-4-4, EN 61000-4-3
Dimensions & Weight:
Width: 5.4 inches
Depth: 6.5 inches
Height: 0.6 inches
Environmental Parameters:
Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Humidity Range Operating: 5 – 90%
Compatibility:
Compatible With: Juniper Networks J-series Services Router J2320, J2350, J4300, J4350, J6300, J6350; Juniper Networks Secure Services Gateway SSG 520, SSG 550.
