JW009A HPE 2.4-2.5GHz 4dBi 4.9-5.875GHz Antenna

HPE-JW009A
HPE-JW009A

  • Fast Shipping

    Receive products in amazing time

  • Easy Returns

    Return policy that lets you shop at ease

  • Always Authentic

    We only sell 100% authentic products

  • Secure Shopping

    Your data is always protected

$36.00

Highlights

JW009A Overview

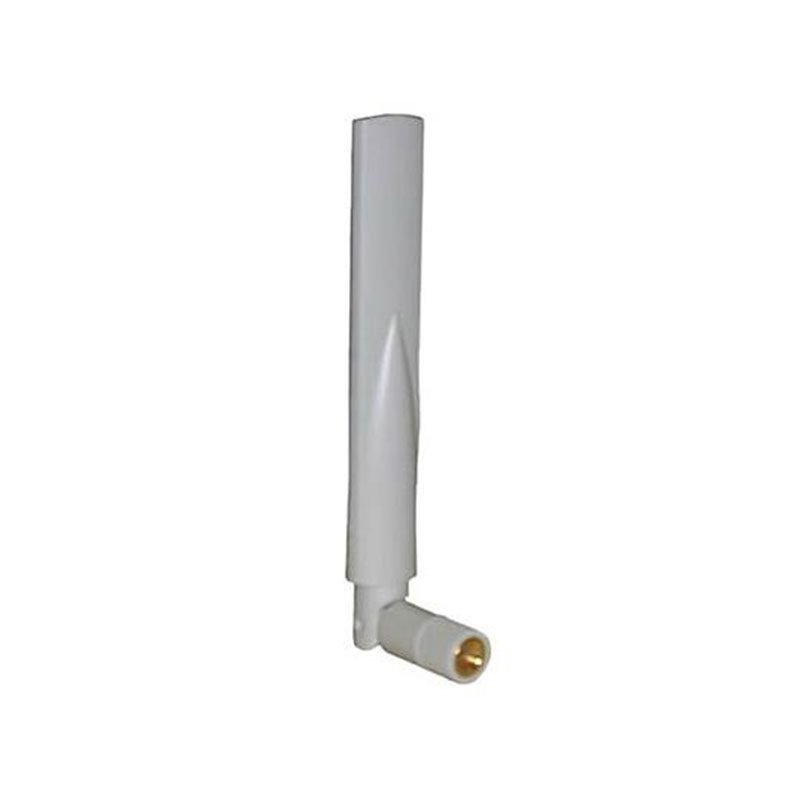

This is also known as the AP‑ANT‑1W, is a dual‑band indoor omni‑directional antenna designed for use primarily with Aruba / HPE wireless access points. It covers the 2.4 GHz band (2.4 – 2.5 GHz) and the 5 GHz band (4.9 – 5.875 GHz), making it suitable for modern WiFi (802.11n, ac, ax) deployments that require both frequency ranges. In the 2.4 GHz band, it offers 4 dBi gain, while in the 5 GHz band it offers 6 dBi gain, giving it enough sensitivity to boost signal strength over moderate indoor distances.

SKU: JW009A Categories: , Tags: , , Brand:

Description

JW009A Technical Specifications

HPE 2.4-2.5GHz 4dBi 4.9-5.875GHz Antenna

Manufacturer: HPE
Brand: HPE
Network & Communication
Impedance: 50 ohm
Connectivity
Connector Provided: 1 x RP-SMA male
Technical Information
Antenna Gain: 4 dBi (for 2400 MHz – 2500 MHz), 6 dBi (for 4900 MHz – 5875 MHz)
Antenna Placement: Indoor
Directivity: Omni-directional
Frequency Range: 2.4 – 2.5 GHz, 4.9 – 5.875 GHz
Horizontal Beamwidth: 360°
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Vertical Beamwidth: 25° (at 4.9 – 5.875 GHz), 50° (at 2.4 – 2.5 GHz)
Voltage Standing Wave Ratio (VSWR): 2.0:1
Service Activation: No
Stylus Type: Antenna
Dimensions & Weight
Height: 5 inch
Width: 0.7 inch
Depth: 1.5 inch
