Description
J9773A#AC3 Technical Specifications

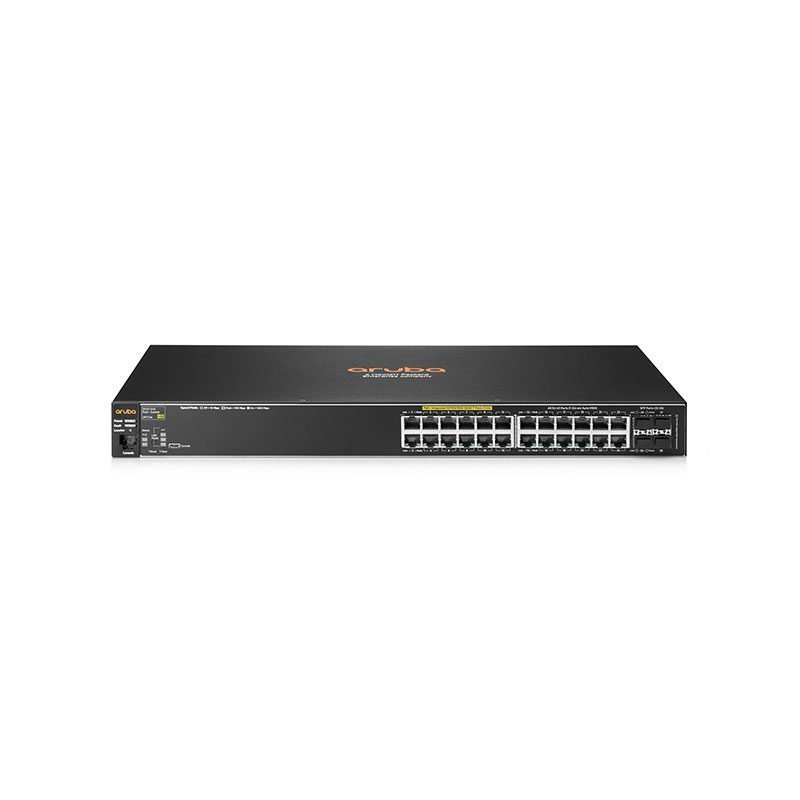

HPE Aruba 2530-24G-PoE+ Switch: 24 Ports Managed Rack Mountable
Header
- Manufacturer: Aruba
- Brand: Aruba
- Product Line: HPE Aruba
- Model: 2530-24G-PoE+
- Packaged Quantity: 1
Processor
- Installed Qty: 1
- Manufacturer: ARM
- Clock Speed: 800 MHz
RAM
- Technology: DDR3 SDRAM
- Installed Size: 256 MB
Flash Memory
- Installed Size: 128 MB
Performance
- Throughput (64-byte packet size): 41.6 Mpps
- Switching Capacity: 56 Gbps
Networking
- Type: Switch
- Subcategory: Network hubs and switches
- Subtype: Gigabit Ethernet
- Form Factor: Wall-mountable, Rack-mountable, Desktop
- Ports Quantity: 24
- MAC Address Table Size: 16,000 entries
- Jumbo Frame Support: 9220 bytes
- Manageable: Yes
- Remote Management Protocol: SNMP 3, CLI, RMON 1, RMON 2, RMON 9, HTTP, Telnet, RMON 3, SSH-2, SNMP 2c, SNMP 1, TFTP
- Power Over Ethernet (PoE): PoE+
- PoE Budget: 195 watts
Features
- Access Control List (ACL) support
- sFlow, SNTP, ARP, BOOTP support
- Dual firmware images
- Auto-uplink (auto MDI/MDI-X)
- Multiple Spanning Tree Protocol (MSTP) support
- DHCP support
- Multicast Suppression
- LLDP support
- Full duplex mode
- VLAN support
- Port mirroring
- IPv6 support
- Flow control
- Quality of Service (QoS)
- Class of Service (CoS)
- STP Root Guard
- Trunking
- 1.5MB packet buffer
- Generic Attribute Registration Protocol (GARP)
- Half duplex mode
Compliant Standards
- IEEE 802.1w, 802.3x, 802.1p, 802.3ab, 802.3ad (LACP), 802.1ab (LLDP), 802.1x, 802.3, 802.1s, 802.1D, 802.3az, 802.3u, 802.1Q, 802.3at
Ports
- Quantity: 24
- Additional Ports: 4 Gigabit SFP
Interface Provided
- Interfaces: 1 x management (micro-USB) Type B, 4 x Gigabit LAN SFP, 24 x 1000Base-T PoE+, 1 x management RJ-45
Power Device
- Type: Internal power supply
- Nominal Voltage: AC 120/230 V
- Frequency Required: 50/60 Hz
