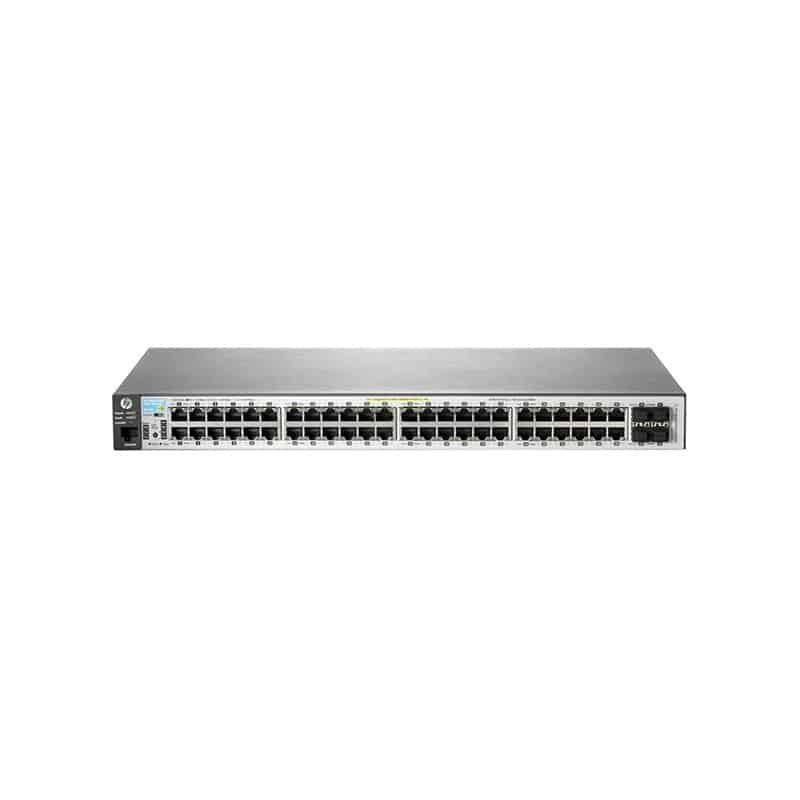

J9772A#AC3 HPE Aruba 2530-48G-PoE+ 48-Port Managed Switch

J9772A#AC3 Technical Specifications

HPE Aruba 2530-48G-PoE+ 48-Port Managed Switch

Header

• Manufacturer: Aruba
• Brand: Aruba
• Product Line: HPE Aruba
• Model: 2530-48G-PoE+
• Packaged Quantity: 1

Processor

• Installed Qty: 1
• Manufacturer: ARM
• Clock Speed: 800 MHz

RAM

• Technology: DDR3 SDRAM
• Installed Size: 128 MB

Flash Memory

• Installed Size: 256 MB

Performance

• Throughput: Up to 77.3 Mpps (64-byte packet size)
• Switching Capacity: 104 Gbps
• Latency: 2.3 µs (64-byte packets)

Networking

• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Rack-mountable, Desktop, Wall-mountable
• Ports Quantity: 48
• MAC Address Table Size: 16,000 entries
• Jumbo Frame Support: 9220 bytes
• Manageable: Yes
• Remote Management Protocol: SSH-2, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 3, TFTP, CLI, Telnet
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 382 W

Features:

• Class of Service (CoS)
• Half duplex mode
• Multicast Suppression
• DHCP support
• Port mirroring
• ARP support
• Dual firmware images
• IPv6 support
• Full duplex mode
• Flow control
• Auto-uplink (auto MDI/MDI-X)
• Trunking
• Generic Attribute Registration Protocol (GARP)
• STP Root Guard
• SNTP support
• VLAN support
• sFlow
• Multiple Spanning Tree Protocol (MSTP) support
• BOOTP support
• Access Control List (ACL) support
• LLDP support

Compliant Standards:

• IEEE 802.1D
• IEEE 802.3x
• IEEE 802.1w
• IEEE 802.1p
• IEEE 802.3az
• IEEE 802.1ab (LLDP)
• IEEE 802.1Q
• IEEE 802.3ad (LACP)
• IEEE 802.1s
• IEEE 802.3
• IEEE 802.3at
• IEEE 802.1x
• IEEE 802.3ab
• IEEE 802.3u
