FTLX8571D3BCVI31 Technical Specifications

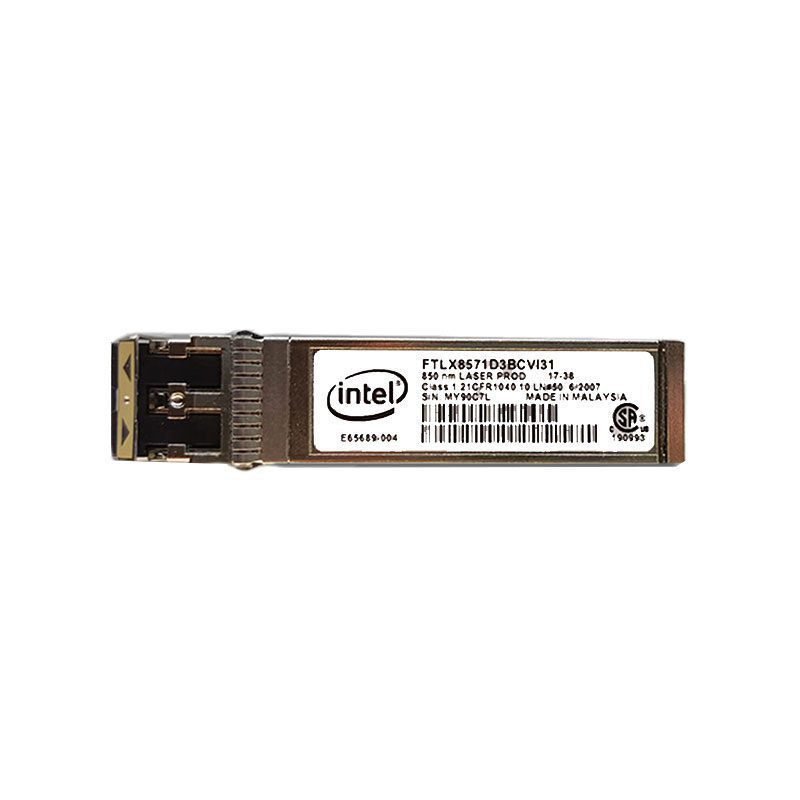

Intel 10GBASE-SR 850nm SFP+ Optical Transceiver
Manufacturer: INTEL
Brand Name: INTEL
Transceiver Type: SFP+
Media Type: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Optical Budget: Minimum 4.6 dB
Maximum Distance: 300m
Data Rate Support: 1.25-10.31 Gbps
Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
DDM/DOM: Supported
Operating Temperature: 0°-70°C
Connector Type: Double LC
Wavelength Bandwidth: TX 20 nm (840-860 nm), RX 20 nm (840-860 nm)
Transmitting Power: Minimum -6.5 dB, Maximum 1 dB
Receiver Sensitivity: -11.1 dBm
Receiver Overload: -1 dBm
Dispersion: 110 ps/nm
Transmitter Type: VSCEL Laser
Receiver Type: PIN photodiode
Power Requirement: +3.3V single power supply
Compliance: CE, Class 1 FDA, IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
