Description

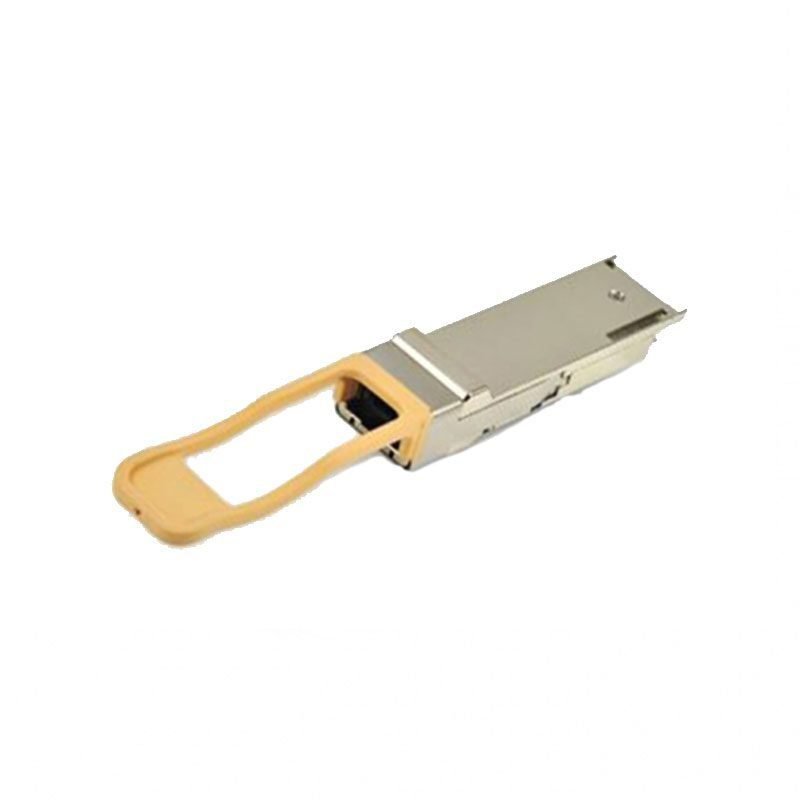

FTL4E1QM1C Technical Specifications
Transceiver Module
This hot-pluggable QSFP Plus transceiver supports aggregate bit rates ranging from 39.8 Gb/s to 44.6 Gb/s, enabling efficient 40 Gigabit Ethernet connectivity. It features a power dissipation of less than 3.5W, ensuring energy efficiency. With an 18.5 dB link insertion loss budget, it operates within a commercial temperature range of 0°C to 70°C. The module requires a single 3.3V power supply and offers a maximum link distance of 40km using Single Mode Fiber (SMF). It includes an uncooled 4x10Gb/s CWDM transmitter and utilizes an XLPPI electrical interface. The connector type is a duplex LC, and it is equipped with built-in digital diagnostic functionalities for monitoring Tx/Rx power levels.
