Description
FTL4C1QL1L Technical Specifications

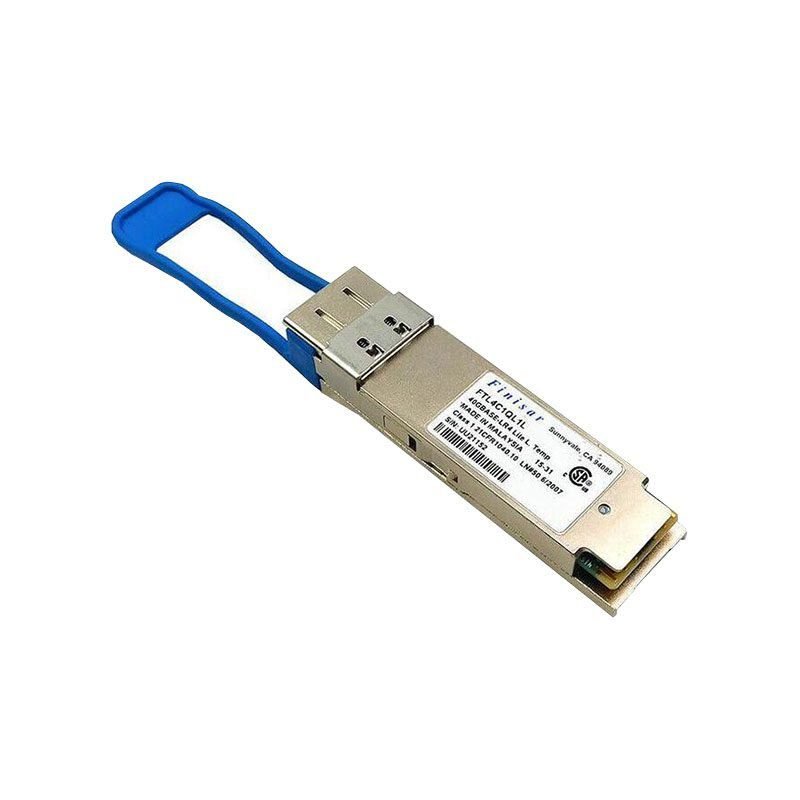

Finisar 40GBASE-LR4 QSFP+ Optical Transceiver Module
Product Features:
- Hot-pluggable QSFP+ form factor for easy installation
- Aggregate bit rates of up to 41.2 Gb/s
- Compliant with RoHS-6 regulations
- Maximum transmission distance: 2km on single-mode fiber (SMF)
- Operating wavelength: 1310nm
- Temperature range: 15°C to 60°C
- Powered by a single 3.3V supply
- Utilizes an uncooled 4x10Gb/s CWDM transmitter
- Equipped with XLPI electrical interface and duplex LC receptacles
- Includes built-in digital diagnostic functions for monitoring Tx/Rx power
- Dimensions: 8.5 x 13.4 x 56.5mm, Weight: 42 grams
- Receiver sensitivity per lane: -11.5 dBm, Receiver overload: 2.3 dBm
- Transmitter type: DFB laser, Receiver type: PIN photodiode
- Chipset includes MAXIM, MINDSPEED, SEMTECH, and UX
