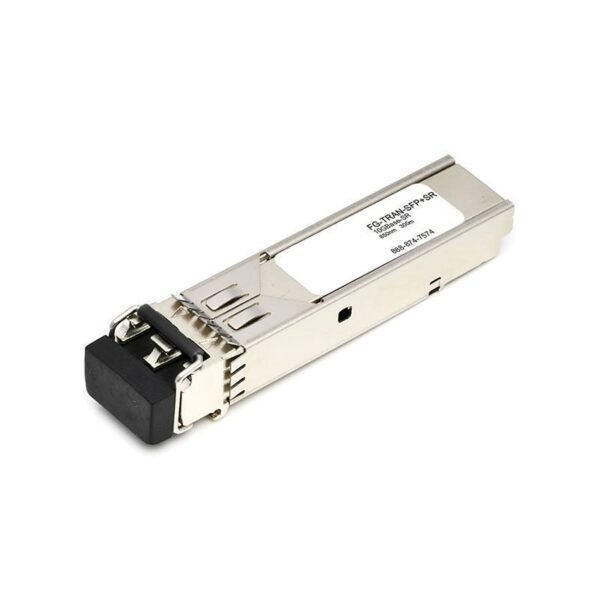

FN-TRAN-SFP+SR Fortinet 10Gbps SFP+ Transceiver Module – Short Range

FN-TRAN-SFP+SR Technical Specifications

Fortinet 10Gbps Short Range Multi-mode Fiber SFP+ Transceiver Module

Manufacturer: Fortinet
Part Number: FN-TRAN-SFP+SR
Transceiver Type: SFP+
Data Transfer Rate: 10 Gbps
Fiber Mode: Multi-mode Fiber (MMF)
Maximum Distance: 300 meters
Wavelength: 850 nm
Connector Type: LC Connector
Form Factor: SFP+
Maximum Data Rate: 10Gbps
Distance Capability: Up to 300m
Wavelength Specification: 850nm
Interface: LC Duplex
Cable Type: Multi-mode Fiber
DOM Support: Yes
Operating Temperature: 0 to 70°C (32 to 158°F)
Compliance Standards: MSA
Warranty: Lifetime Replacement
Dimensions: 8.5 x 13.4 x 56.5 mm
Weight: 19 grams
Features: Auto-negotiation, Digital Diagnostics Monitoring (DDM), hot-swappable
Compliance Standards: IEEE 802.3ae
Interfaces: 1 x Ethernet 10GBase-SR – LC multi-mode female x 2
Product Summary: Fortinet’s SFP+ transceiver module is designed for 10 Gigabit Ethernet applications.
