Description
EX9253-RED-AC Technical Specifications

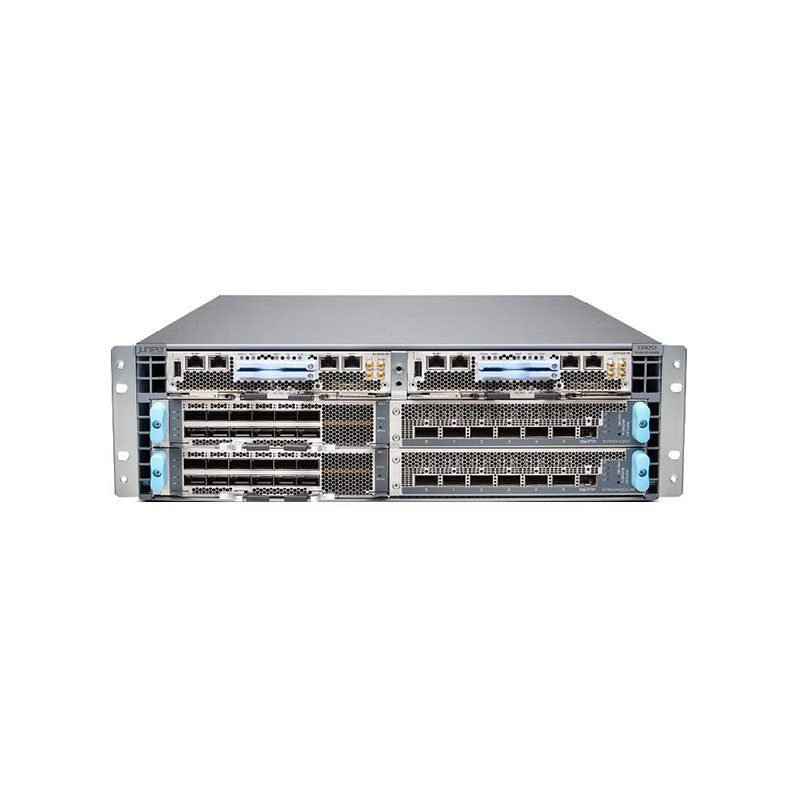

Juniper Networks EX Series 9253 Redundant Switch Managed Rackmount
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: 9253
Edition: Redundant
Packaged Quantity: 1
Chassis
Built-in Devices: 4 x 100 GB SSD
Installed Devices / Modules Quantity: 2
Supported Devices / Modules Quantity: 4
Processor
Type: Xeon
Installed Quantity: 2
Manufacturer: Intel
Clock Speed: 1.6 GHz
RAM
Installed Size: 128 GB
Performance
Maximum throughput: up to 4.8 Tbps
Capacity
MAC addresses supported: up to 1,000,000, Queues per port (egress): 8, IPv4 routes (Multicast): up to 256,000, IPv6 routes (Multicast): up to 256,000, VLANs supported: 32,000
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 100 Gigabit Ethernet
Form Factor: Rack-mountable
Advanced Switching: Layer 3
Routing Protocols: GRE, BGP, OSPF, and more.
Manageable: Yes
Power Device
Type: Internal power supply
Power Redundancy: Yes
Power Provided: 1600 watts
Nominal Voltage: AC 120/230 V
Dimensions & Weight
Width: 19 inch
Depth: 30 inch
Height: 5.2 inch
Environmental Parameters
Operating Temperature: 32°F to 104°F
Storage Temperature: -40°F to 158°F
Humidity Operating: 5 – 90% (non-condensing)
