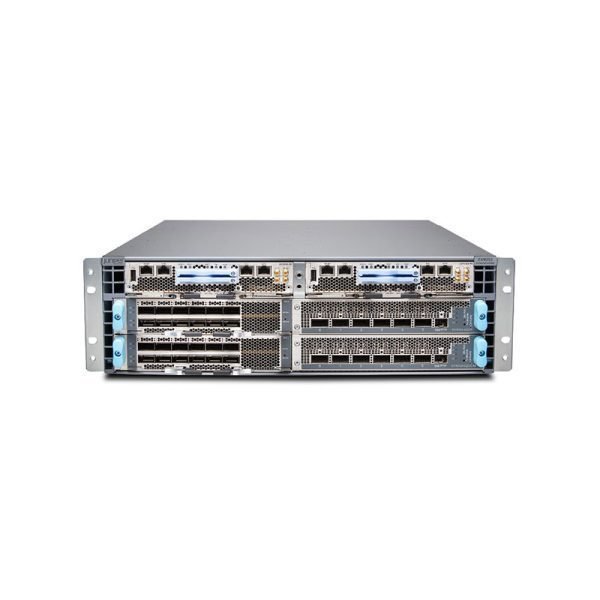

EX9253-AC-BND1 Juniper Networks 9253 Bundle Switch System

EX9253-AC-BND1 Technical Specifications

Overview of the Juniper Networks EX Series 9253 Bundle Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: 9253
Edition: Bundle
Bundled with: Juniper Networks EX9253-6Q12C Line Card
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: 2 x 100 GB SSD
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 3
Processor
Type: Xeon
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 1.6 GHz
RAM
Installed Size: 64 GB
Performance: Bandwidth per slot: 2.4 Tbps, Maximum throughput: 4.8 Tbps, Full duplex bandwidth: 1.2 Tbps
Capacity
QoS hardware queues per port: 8, Virtual interfaces (VLANs): 32000, FIB entries: 512000, ARP entries: 512000, Multicast entries (IPv4): 256000, Policies: 16000
Networking
Type: Switch
Subcategory: Network hubs and switches
Form Factor: Rack-mountable
Advanced Switching: Layer 3
Routing Protocols: Various including OSPF, RIP, and BFD
MAC Address Table Size: 1M entries
Manageable: Yes
Remote Management Protocol: CLI, SNMP, SSH, etc.
Status Indicators: Alarm, Link OK, SSD activity, Online
Features: DHCP server, IPv6 support, High Availability, Firewall protection, and more
Dimensions & Weight
Width: 19 inch, Depth: 30 inch, Height: 5.2 inch, Weight: 120 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F, Storage Temperature: -40°F to 158°F, Humidity Operating: 5 – 90% (non-condensing)
