Description
EX4650-48Y-DC-AFO Technical Specifications

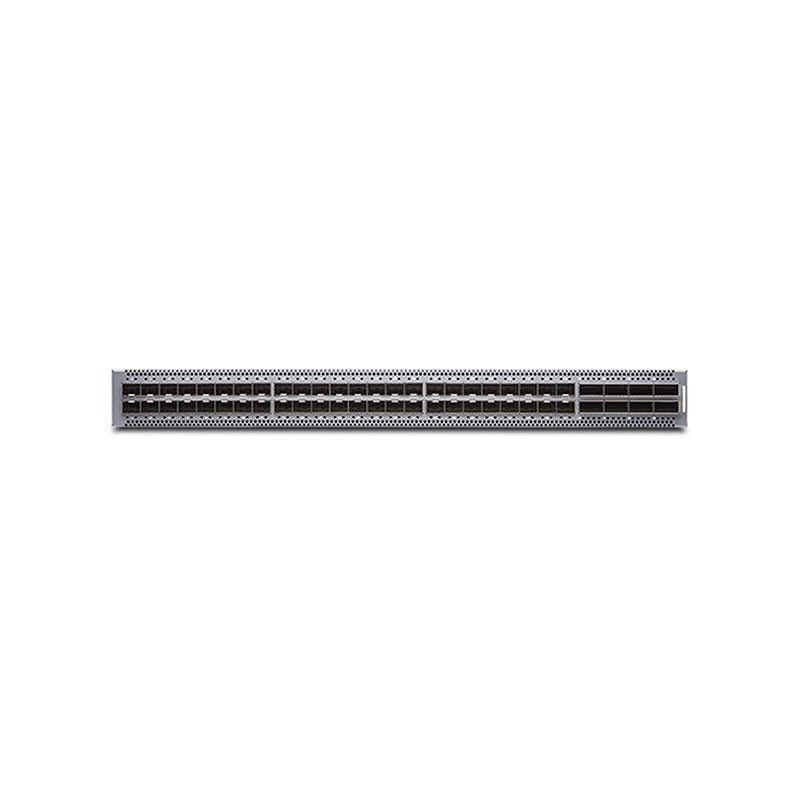

Juniper Networks EX Series EX4650-48Y Managed Rackmount Switch
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX4650-48Y
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: 64 GB SSD
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 2.3 GHz
RAM
Installed Size: 16 GB
Flash Memory
Installed Size: 64 GB
Performance
Switching capacity: 1.49 Bpps, 2 Tbps
Capacity
Mirroring destination VLANs: 4, IPv4 routes (Multicast): 104000, ARP entries: 64000, IPv6 routes (Unicast): 104000, and more. This switch supports advanced networking features including Layer 3 switching and extensive routing protocols such as BGP and OSPF.
Networking
Type: Switch, Subcategory: Network hubs and switches, Subtype: 25 Gigabit Ethernet
Ports
Qty: 48, Type: 1/10/25 Gigabit SFP28
Software
Type: Junos OS
Power Device
Type: Internal power supply, Power Provided: 650 watt
Dimensions & Weight
Width: 17.4 inch, Depth: 20.5 inch, Height: 1.7 inch, Weight: 23.7 lbs
Environmental Parameters
Operating Temperature: 32 to 104°F, Storage Temperature: -40 to 158°F, Humidity: 5 – 90% operating.
