EX2300-C-12T-TAA Juniper Networks EX2300-C 12-Port Switch

EX2300-C-12T-TAA Technical Specifications

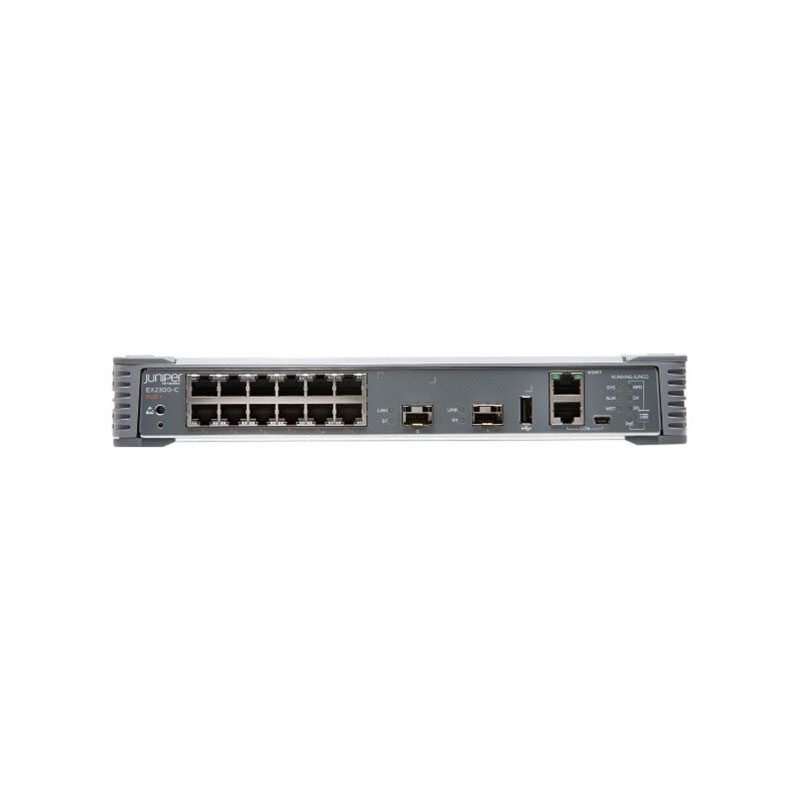

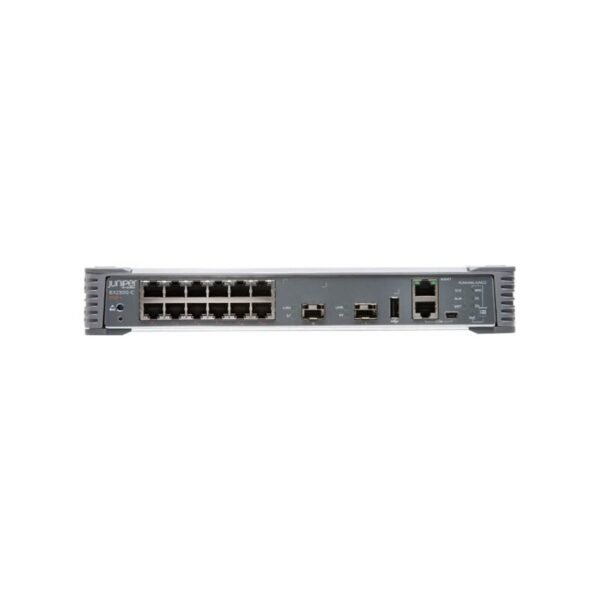

Juniper Networks EX Series EX2300-C-12T Switch with 12 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX2300-C-12T
Packaged Quantity: 1
Processor
Installed Qty: 1
Manufacturer: ARM
Clock Speed: 1.25 GHz
RAM
Installed Size: 2 GB
Flash Memory: 2 GB
Performance
Switching Capacity: 64 Gbps, Throughput: 47 Mpps
Capacity
LAG Groups: 128, Maximum Neighboring Networks: 750, Maximum Member Ports per LAG: 8, ARP Entries: 1024, QoS Hardware Queues per Port: 8, IPv6 Hosts: 2048, IPv4 Hosts: 4096, IPv6 Multicast Routes: 1024, VLANs: 2048, IPv6 Unicast Routes: 128, IPv4 Multicast Routes: 2048, IPv4 Unicast Routes: 512, IGMP Snooping Entries: 1000, MSTP Instances: 64
Networking
Type: Switch
Subcategory: Network Hubs and Switches
Subtype: Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 12
Advanced Switching: Layer 3
Routing Protocol: Static IPv4, RIP-2, RIPng, OSPFv3, Static IPv6, CIDR, RIP-1
MAC Address Table Size: 16000 Entries
Jumbo Frame Support: 9216 Bytes
Manageable: Yes
Remote Management Protocol: SNMP, CLI, RMON, TFTP, SSH, HTTP, Telnet, HTTPS
Power Device
Type: Internal Power Supply
Power Provided: 40 Watts
Power Consumption Operational: 20 Watts
Dimensions & Weight
Width: 11 inches
Depth: 9.4 inches
Height: 1.7 inches
Weight: 5.47 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Min Storage Temperature: -40°F
Max Storage Temperature: 158°F
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
