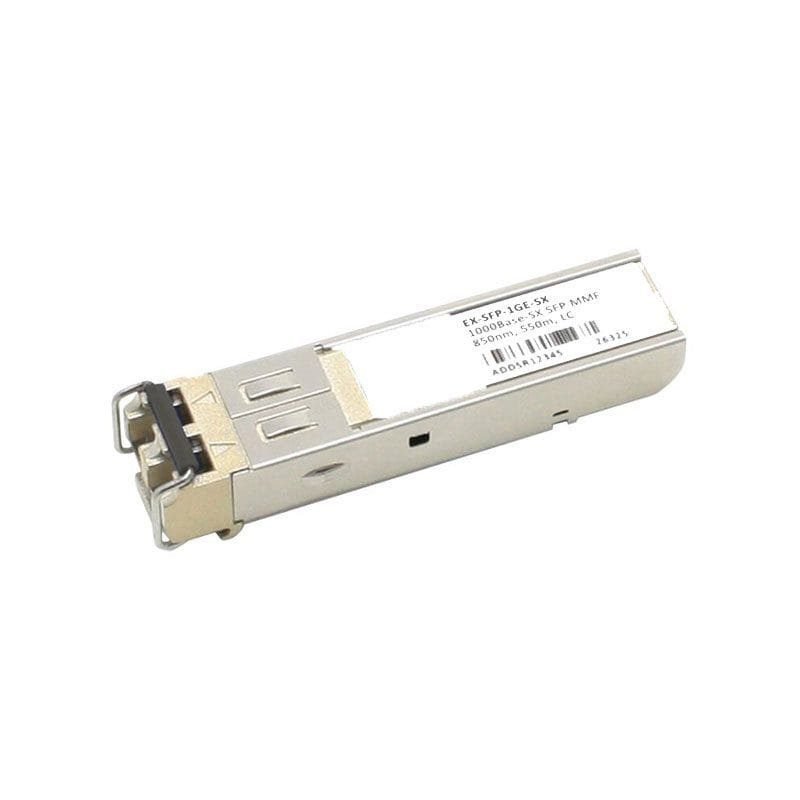

EX-SFP-1GE-SX Technical Specifications
Juniper 1000BASE-SX SFP Module
Device Type: SFP (Mini-GBIC) Transceiver Module
Enclosure Type: Plug-In Module
Networking:
Connectivity Technology: Wired
Cabling Type: 1000BASE-SX
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Expansion / Connectivity:
Interfaces: Network – Ethernet 1000BASE-SX
Compatible Slots: SFP (Mini-GBIC), compatible with Juniper Networks
Vendor Name: FS
Form Factor: SFP
Maximum Data Rate: 1.25 Gbps
Wavelength: 850 nm
Maximum Cable Distance:
550 m at 50/125 µm OM2 MMF
275 m at 62.5/125 µm OM1 MMF
220 m at 62.5/125 µm FDDI MMF
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
DDM/DOM: Supported
Operating Temperature Range: 0 to 70°C (23 to 158°F)
TX Power: -9.5 to -3 dBm
Receiver Sensitivity: < -17 dBm
Typical Power Consumption: ≤0.8 W
Receiver Overload: -3 dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >9 dB
EMC (Electromagnetic Compatibility): Supported
MTBF (SX): 2,457,002 Hours
