Description
CISCO1801W-AG-B/K9-RF Technical Specifications

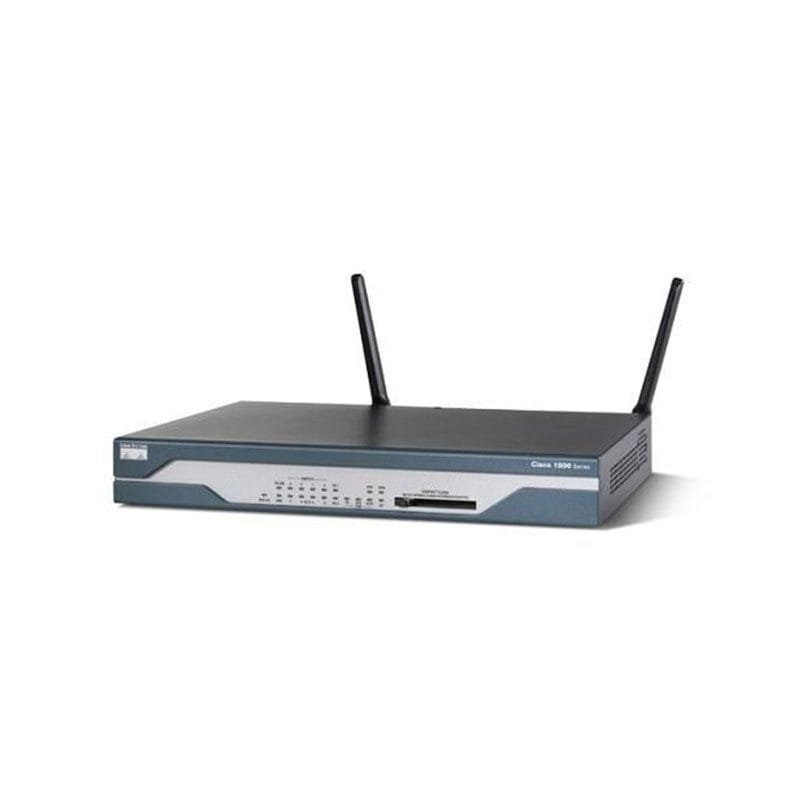

Cisco 1801 Integrated Services Router
The Cisco 1801W Integrated Services Router is a wireless router that features an integrated 8-port switch. Manufactured by Cisco Systems, Inc., it belongs to the Cisco 1800 series. The model number is CISCO1801W-AG-B/K9. This external router has a 1U form factor with dimensions of 32.4 cm x 24.6 cm x 4.5 cm and weighs 2.8 kg.
It is localized for Europe and comes with 128 MB of installed DRAM memory, expandable to 384 MB, and 32 MB of installed Flash memory, with a maximum capacity of 128 MB. The router supports a data transfer rate of up to 54 Mbps.
Routing protocols include OSPF, RIP-1, RIP-2, BGP, and EIGRP, while data link protocols encompass Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, and IEEE 802.11g. The device is compliant with standards such as IEEE 802.1Q and is Wi-Fi CERTIFIED.
Additional features include Cisco IOS Advanced IP services, firewall protection, hardware encryption, VPN support, load balancing, Stateful Packet Inspection (SPI), Intrusion Prevention System (IPS), URL filtering, and wall mountable design. Power requirements are AC 120/230 V (50/60 Hz).
