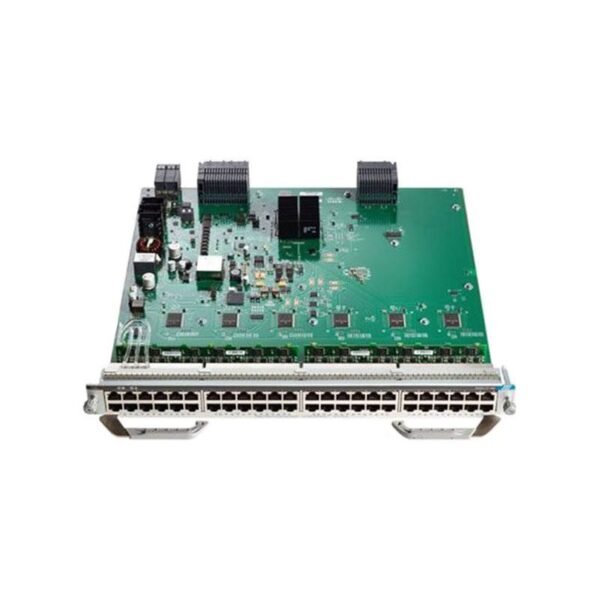

C9400-LC-48H Cisco Catalyst 9400 Series 48-Port Line Card Switch

C9400-LC-48H Technical Specifications

Cisco Catalyst 9400 Series 48 Port Plug-in Module

Dimensions & Weight
Depth: 14.9 in
Height: 14.6 in
Width: 1.6 in
Environmental Parameters
Operating Humidity Range: 10 – 95% (non-condensing)
Storage Humidity Range: 10 – 95% (non-condensing)
Max Operating Temperature: 113 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 23 °F
Min Storage Temperature: -40 °F
Header
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9400 Series 48 Port Line Card
Packaged Quantity: 1
Product Line: Cisco Catalyst
Ethernet Technology: Gigabit Ethernet
Interface Provided
Connector Type: RJ-45
Quantity: 48
Type: 1000Base-T
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, and more.
Networking
Compliant Standards: IEEE 802.1ae, IEEE 802.1as, IEEE 802.3, and others.
Features: Energy Efficient Ethernet, Precision Time Protocol (PTP), and more.
Form Factor: Plug-in module
Jumbo Frame Support: 9216 bytes
PoE Budget: 90 W
Power Over Ethernet (PoE): UPOE+
Ports
Quantity: 48
Type: 10/100/1000
System Requirements
Minimum Operating System: Cisco IOS XE 16.6 or later.
