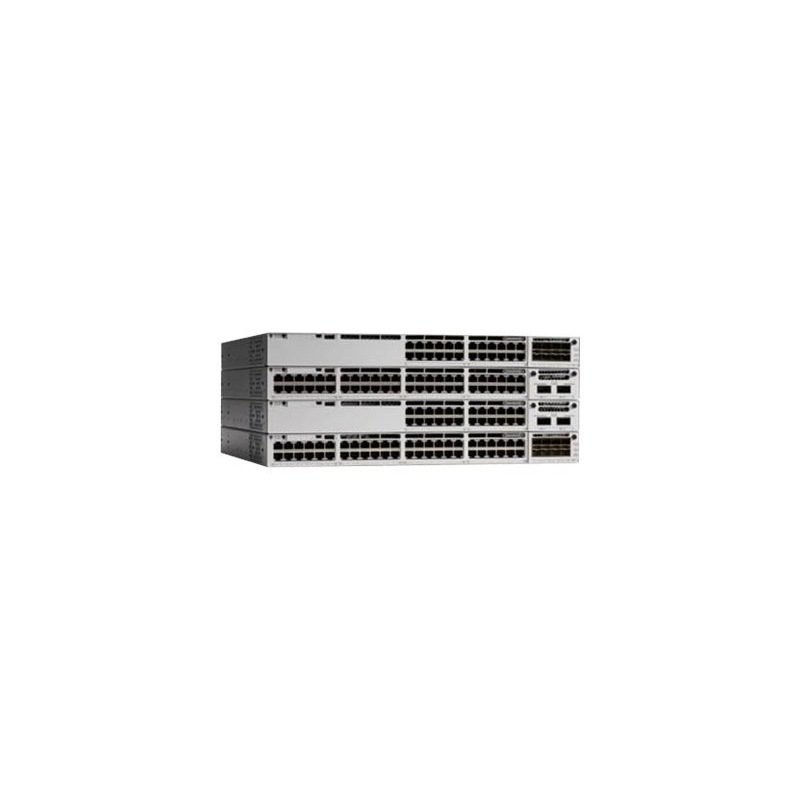

C9300-48P-EDU Cisco Catalyst 9300 Managed Switch – 48 Ports

C9300-48P-EDU Technical Specifications

Cisco Catalyst 9300 Managed Switch – 48 Ports

Capacity

• Flexible NetFlow entries: 64,000
• IPv4 routing table entries: 32,000
• IPv6 routing table entries: 16,000
• Switched virtual interfaces (SVIs): 2,000
• VLAN IDs: 4,000

Dimensions & Weight

• Depth: 17.5 in
• Height: 1.7 in
• Weight: 16.73 lbs
• Width: 17.5 in

Environmental Parameters

• Operating Humidity: 5 – 90% (non-condensing)
• Storage Humidity: 5 – 90% (non-condensing)
• Max Operating Temperature: 113 °F
• Max Storage Temperature: 158 °F
• Min Operating Temperature: 23 °F
• Min Storage Temperature: -40 °F

Flash Memory
Installed Size: 16 GB
Header
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9300
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Comments: PoE+
Connector Type: RJ-45
Qty: 48
Type: 1000Base-T
Qty: 1
Type: USB 2.0
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, and more.
Encryption Algorithm: 128-bit AES
Height (Rack Units): 1
MTBF: 277,770 hours
Pricing Type: K-12 education
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, 802.1Q, 802.3, and others.
Features: 16MB packet buffer, 3 fans, 802.1x authentication, and more.
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
PoE Budget: 437 W
Ports Qty: 48
Power Over Ethernet (PoE): PoE+
Remote Management Protocol: CLI, NETCONF, RESTCONF, SNMP, etc.
Routing Protocol: IGMP, OSPF, RIP, and more.
Stackable: Yes
Status Indicators: Status
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Forwarding rate
Value: 190.48 Mpps
Type: Stacking bandwidth
Value: 480 Gbps
Type: Switching capacity
Value: 128 Gbps
Ports
Qty: 48
Type: 10/100/1000 (PoE+)
Power Device
Hot-Plug: Yes
Installed Qty: 1
Max Supported Qty: 2
Power Provided: 715 Watt
Power Redundancy: Optional
Type: Internal power supply
RAM
Installed Size: 8 GB
