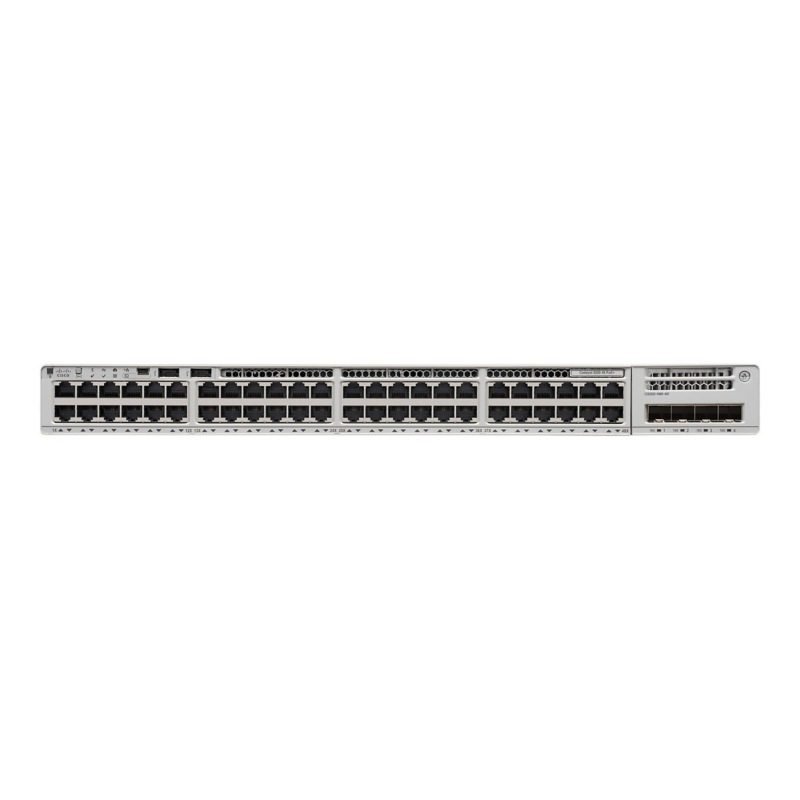

C9200-48P-E, Cisco Catalyst 9200 Series PoE+ Switch

C9200-48P-E Technical Specifications

Cisco Catalyst 9200 Switch

Product Line: Cisco Catalyst
Product Series: C9200
Downlinks: 48 full PoE+ ports (10/100/1000 or PoE+ copper)
Uplink: Modular uplink configurations available
Power Supply: Default primary AC power supply is PWR-C5-1KWAC
Fans: Field-replaceable unit (FRU) redundant
Software: Network Essentials
Dimensions: 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)
Weight: 5.5 kg
Virtual Networks: Supports up to 4
Stacking Bandwidth: 160 Gbps
MAC Address Capacity: 32,000
IPv4 Routes: 14,000 (10,000 direct, 4,000 indirect)
IPv4 Routing Entries: 4,000
IPv6 Routing Entries: 2,000
Multicast Routing Scale: 1,000
QoS Entries: 1,000
ACL Entries: 1,600
Packet Buffer: 6 MB for 24- or 48-port models
Flexible NetFlow: 16,000 flows on 24- and 48-port models
DRAM: 4 GB
Flash: 4 GB
VLAN IDs: 4096
Total SVIs: 1000
Jumbo Frames: 9198 bytes
Wireless Bandwidth: Up to 48 Gbps on 24-port and 48-port models
Switching Capacity: 176 Gbps
Forwarding Rate: 261.9 Mpps
Mean Time Between Failures: 375,570 hours.
